Rear Drive Shaft Removal/Installation
>>
Brake Caliper Component Removal Note
Brake Caliper Component Removal Note
Remove the rear brake caliper component and suspend it out of the way using a cable.

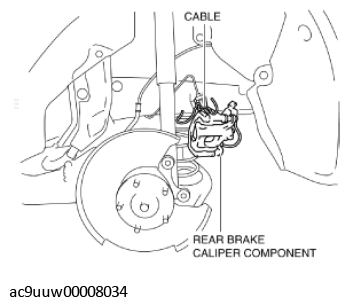

Fig 1: Removing Rear Brake Caliper Component
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
