Drive Shaft Location Index

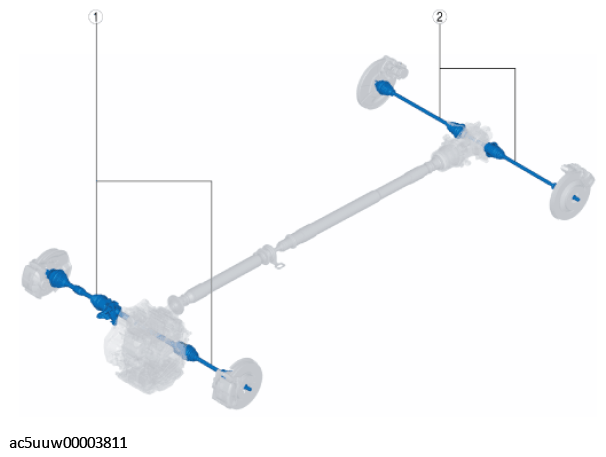

Fig 1: Drive Shaft Parts Location
G11427124Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Front drive shaft
(See FRONT DRIVE SHAFT INSPECTION .)
(See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
(See FRONT DRIVE SHAFT (TRIPOD JOINT) DISASSEMBLY/ASSEMBLY .)
2 Rear drive shaft (AWD)
(See REAR DRIVE SHAFT INSPECTION .)
(See REAR DRIVE SHAFT REMOVAL/INSTALLATION .)
(See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY .)
