Rear Drive Shaft Inspection

Inspect each connecting part for looseness.
- If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION .)
Inspect the boot for damage and cracks.

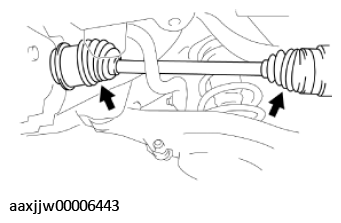

Fig 1: Locating Boot For Damage
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY .)
Move the spline and joint up and down, left and right by hand and verify that there is no excessive play.
- If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY .)
