Between Vacuum Pump and Power Brake Unit

  1. Pinch open the clamps using pliers and disconnect the vacuum hose.

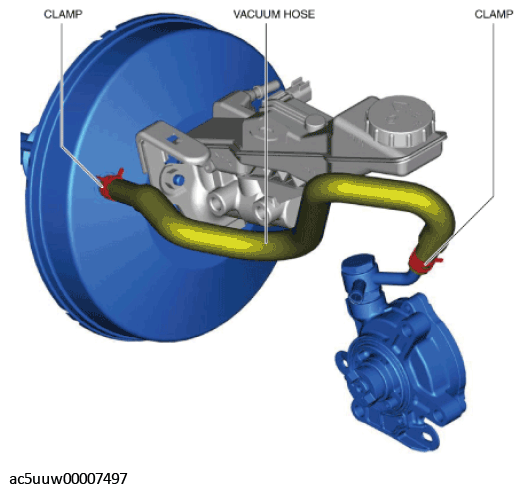

    Fig 1: Locating Vacuum Hose
    G11426962Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal. (See VACUUM HOSE (BETWEEN VACUUM PUMP AND POWER BRAKE UNIT) INSTALLATION NOTE .)
