CX-5 Grand Select, FWD
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Conventional Brake System
>>
Vacuum Hose Removal/Installation
>>
Vacuum hose (between vacuum pump and power brake unit) installation note
Vacuum hose (between vacuum pump and power brake unit) installation note

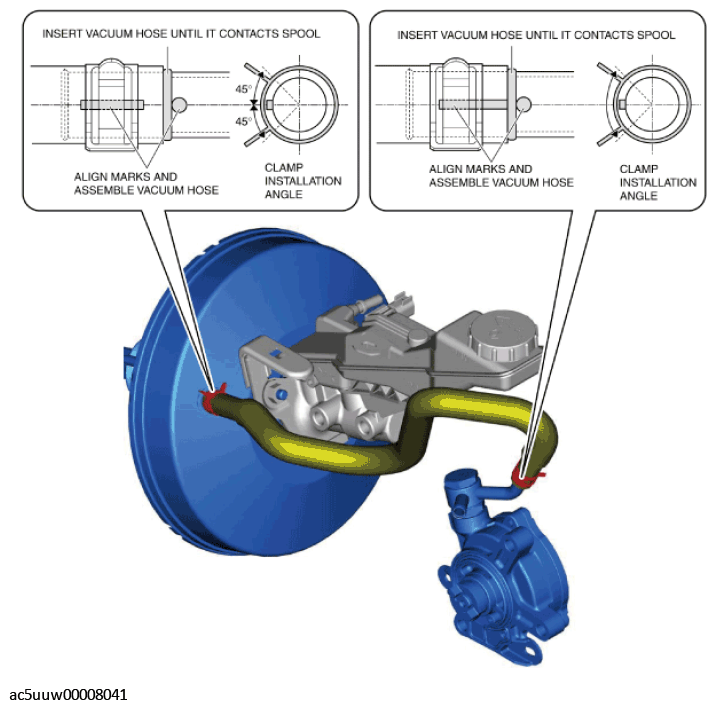

Install the vacuum hose as shown in the figure.
Fig 1: Installing Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
