Front Drain Hose Removal/Installation: Passenger-side

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    8. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    9. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    10. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    12. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    13. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    14. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    15. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    16. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    17. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    18. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    19. Bass-box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    20. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    21. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    22. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    23. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    24. Head restraint
    25. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
    26. Tuner and amp unit (TAU) (With center display) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
  3. Disconnect the front drain hose in the direction of the arrow shown in the figure.

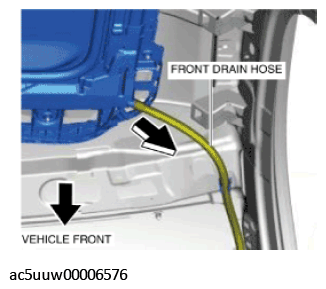

    Fig 1: Disconnecting Front Drain Hose
    G11426705Courtesy of MAZDA MOTORS CORP.
  4. Spread hook A in the directions of arrows (1) shown in the figure, move the front drain hose in the direction of arrow (2), and remove it from hook A.

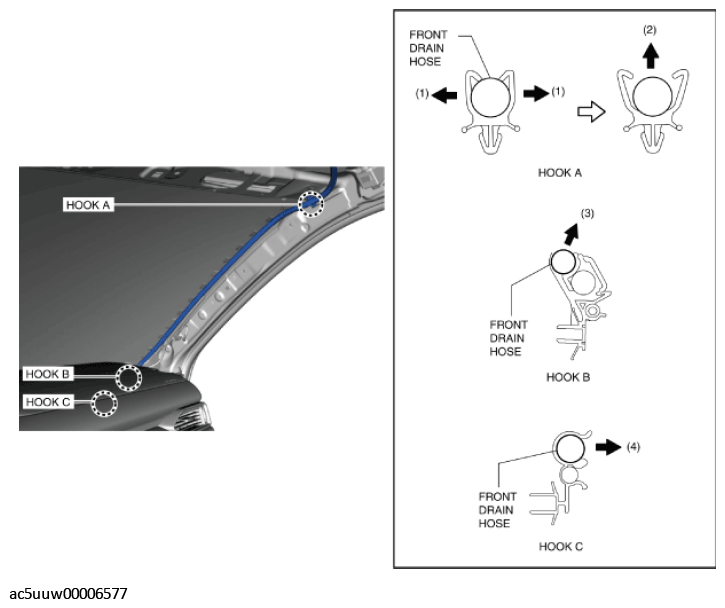

    Fig 2: Removing Front Drain Hose From Hook A
    G11426706Courtesy of MAZDA MOTORS CORP.
  5. Pull the front drain hose in the direction of arrow shown in the figure and remove it from hook B.
  6. Pull the front drain hose in the direction of arrow (4) shown in the figure and remove it from hook C.
  7. Partially peel back the dashboard lower insulator and insert a tape-wrapped flathead screwdriver into the position shown in the figure.

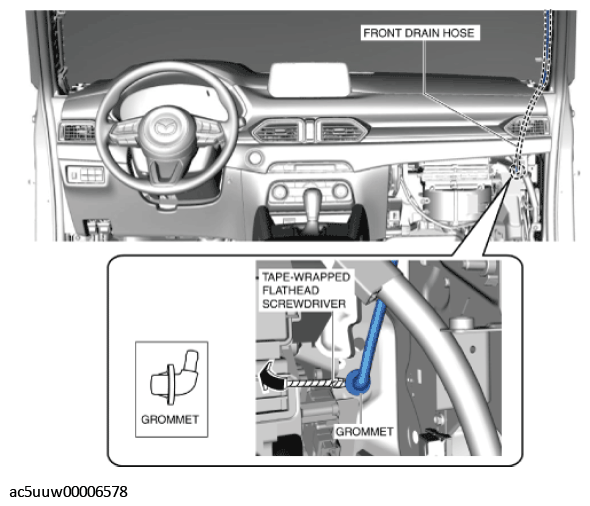

    Fig 3: Removing Grommet Using Flathead Screwdriver
    G11426707Courtesy of MAZDA MOTORS CORP.
  8. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and remove the grommet.
  9. Pull the front drain hose from the A-pillar side and pull it out in the direction of the arrow shown in the figure.

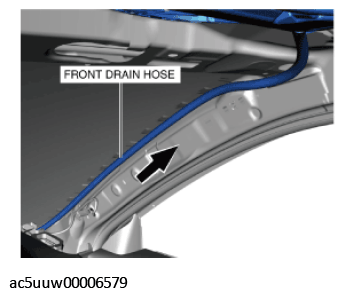

    Fig 4: Pulling Front Drain Hose From A-Pillar Side
    G11426708Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
