Tuner And Amp Unit (Tau) Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connectors.

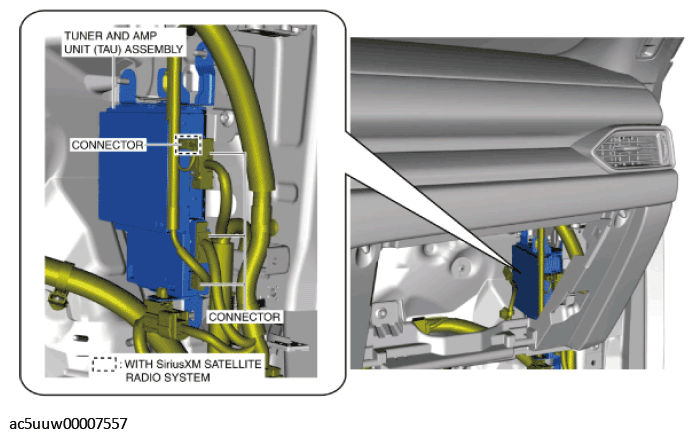

    Fig 1: Disconnecting Tuner And AMP Unit Connectors
    G11426112Courtesy of MAZDA MOTORS CORP.
  4. Detach the wiring harness clips.

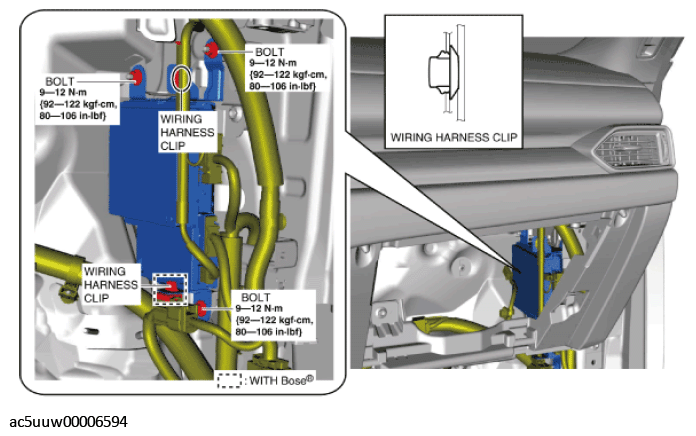

    Fig 2: Detaching Tuner And AMP Unit Wiring Harness Clips
    G11426113Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
  6. Remove the tuner and amp unit (TAU) component.
  7. Remove the screws.

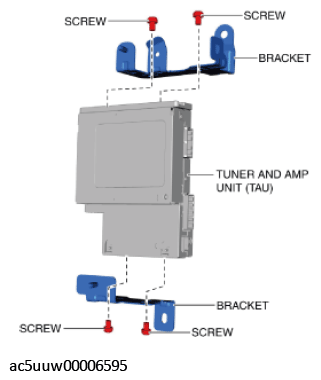

    Fig 3: Removing Tuner And Amp Unit Screw
    G11426114Courtesy of MAZDA MOTORS CORP.
  8. Remove the brackets.
  9. Remove the tuner and amp unit (TAU).
  10. Install in the reverse order of removal.
