Front Drain Hose Removal/Installation: Driver-side

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Sunroof seaming welt (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    8. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    9. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    10. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    11. Knee bolster (With knee bolster) (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    12. Glove compartment (With center display) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    13. Dashboard under cover (With center display) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    14. Passenger-side lower panel (With center display) (See LOWER PANEL REMOVAL/INSTALLATION .)
    15. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    16. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    17. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    18. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    19. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    20. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    21. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    22. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    23. Bass-box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    24. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    25. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    26. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    27. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    28. Head restraint
    29. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  3. Disconnect the front drain hose in the direction of the arrow shown in the figure.

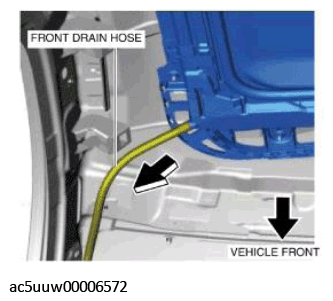

    Fig 1: Disconnecting Front Drain Hose
    G11426701Courtesy of MAZDA MOTORS CORP.
  4. Spread hook A in the directions of arrows (1), pull the front drain hose in the direction of arrow (2), and remove it from hook A.

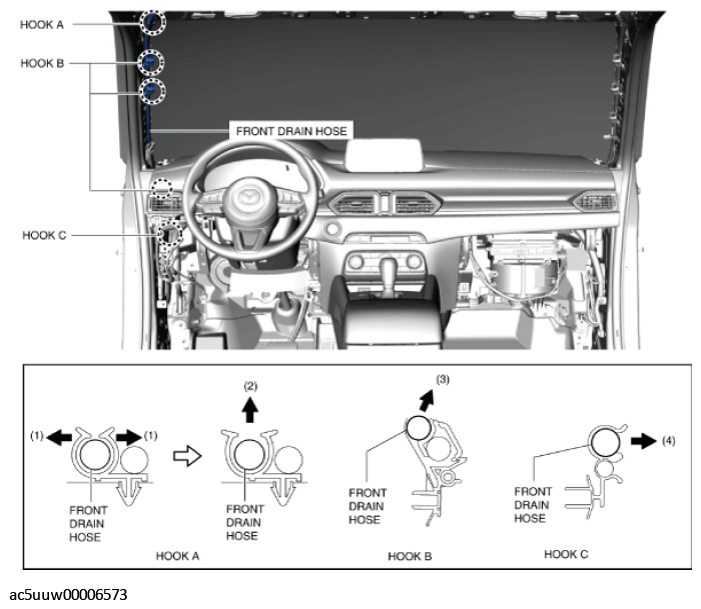

    Fig 2: Pulling Front Drain Hose
    G11426702Courtesy of MAZDA MOTORS CORP.
  5. Pull the front drain hose in the direction of arrow (3) shown in the figure and remove it from hook B.
  6. Pull the front drain hose in the direction of arrow (4) shown in the figure and remove it from hook C.
  7. Partially peel back the dashboard lower insulator and insert a tape-wrapped flathead screwdriver into the position shown in the figure.

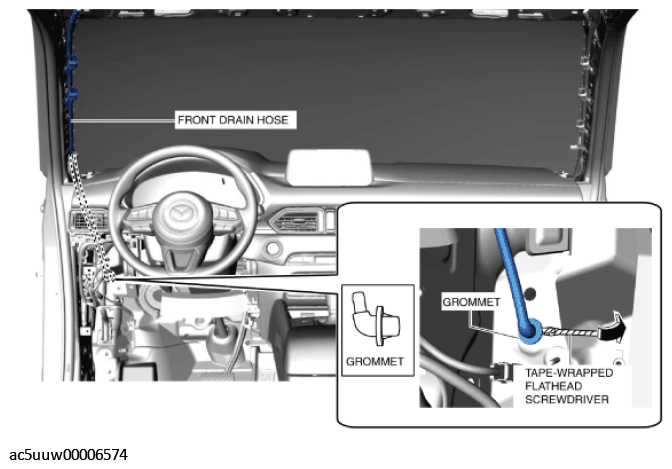

    Fig 3: Removing Grommet Using Screwdriver
    G11426703Courtesy of MAZDA MOTORS CORP.
  8. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and remove the grommet.
  9. Pull the front drain hose from the A-pillar side and pull it out in the direction of the arrow shown in the figure.

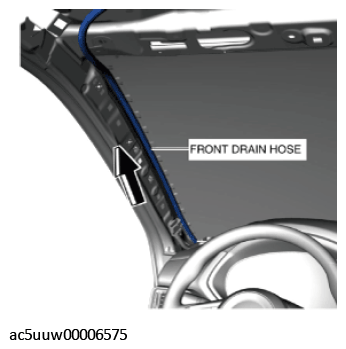

    Fig 4: Pulling Out Front Drain Hose
    G11426704Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
