Rear Speaker Grille (With Bose®)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Bass-box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    3. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    7. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    8. Rear speaker (See REAR SPEAKER REMOVAL/INSTALLATION .)
  3. Remove the screws.

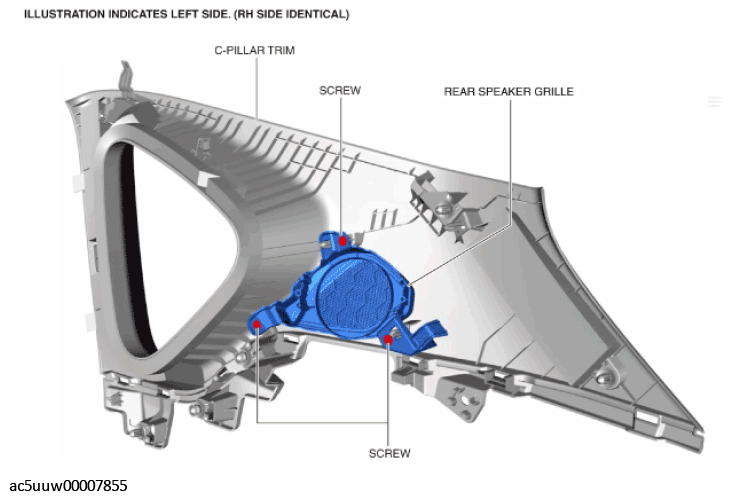

    Fig 1: C-Pillar Trim, Rear Speaker Grille And Screws
    G11428031Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear speaker grille in the direction of the arrow shown in the figure.
    Fig 2: Removing Rear Speaker Grille
    G11428032Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
