Lower Column Cover

Remove the upper column cover. (See UPPER COLUMN COVER .)
Remove the screws.

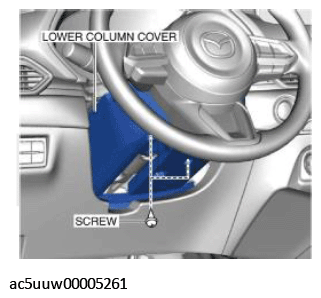

Fig 1: Removing Lower Column Cover Screws
Courtesy of MAZDA MOTORS CORP.
Lower the lower column cover in the direction of arrows (2) shown in the figure while keeping it open in the direction of arrows (1).

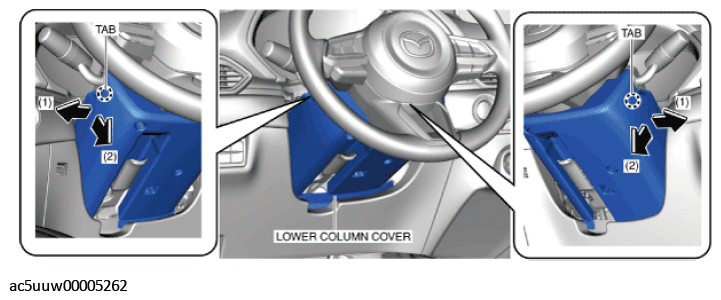

Fig 2: Lowering Lower Column Cover
Courtesy of MAZDA MOTORS CORP.
Lower the adjusting lever to the bottommost position.

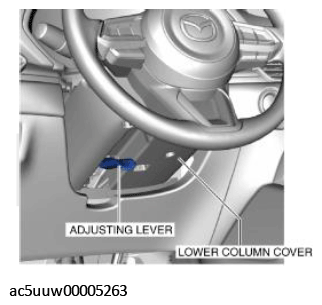

Fig 3: Adjusting Lever And Lower Column Cover
Courtesy of MAZDA MOTORS CORP.
Move the lower column cover in the direction of the arrow shown in the figure and remove it while pulling out the guide.

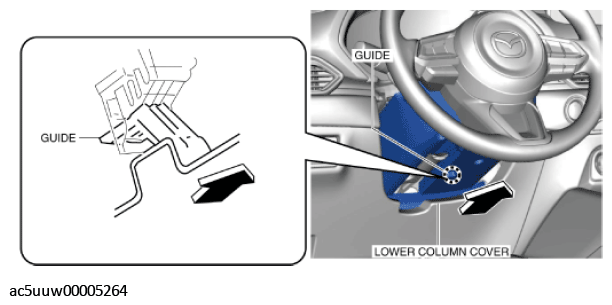

Fig 4: Removing Lower Column Cover
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
