Upper Column Cover
- Lower the steering wheel to the bottommost position.

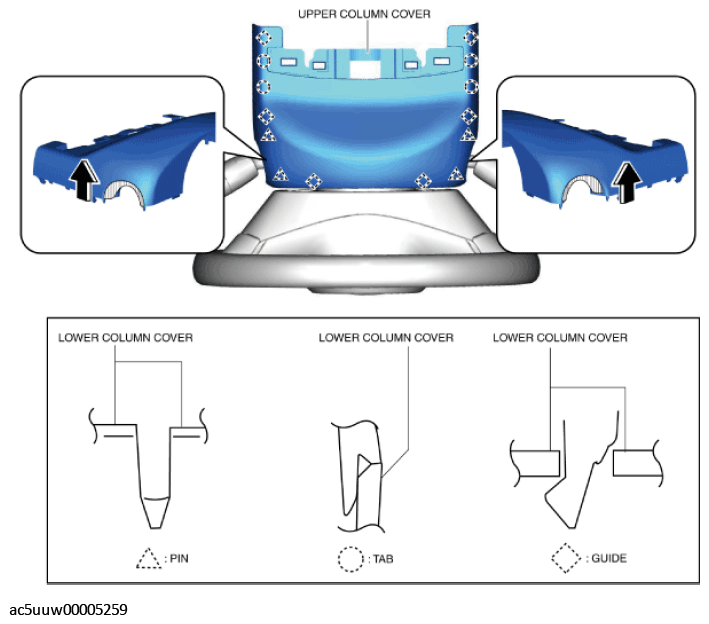

- Press the shaded areas shown in the figure, lift the upper column cover in the direction of the arrows, and detach the pins, tabs, and guides from the lower column cover.
Courtesy of MAZDA MOTORS CORP.

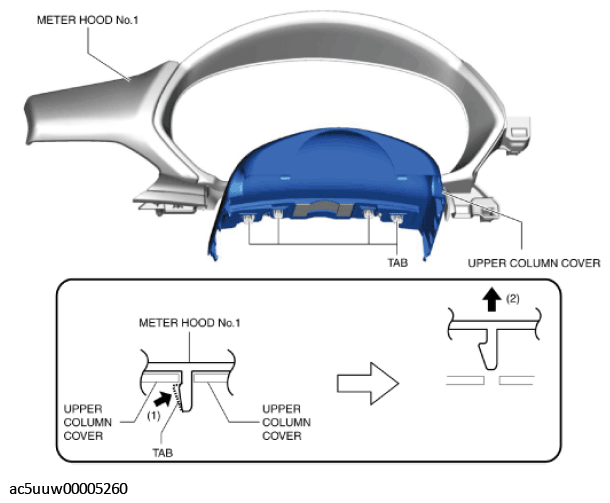

- While pressing the tabs of meter hood No. 1 in the direction of arrow (1) shown in the figure, press them up in the direction of arrow (2) and detach the tabs from the upper column cover.
Courtesy of MAZDA MOTORS CORP.
- Detach all the tabs of meter hood No. 1 from the upper column cover.
- Remove the upper column cover.
- Install in the reverse order of removal.
