Side Spoiler Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL/INSTALLATION .)
  4. Remove the screws.

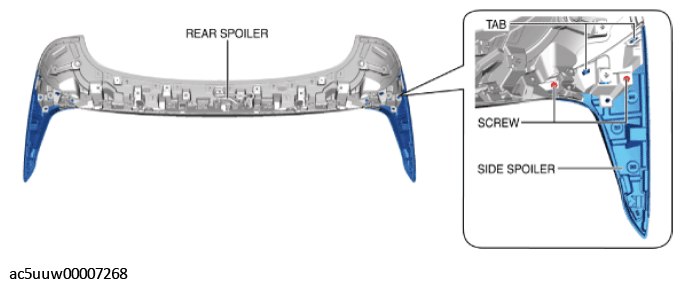

    Fig 1: Removing Side Spoiler Screws
    G11427618Courtesy of MAZDA MOTORS CORP.
  5. Remove the tubs.
  6. Remove the side spoiler.
  7. Install in the reverse order of removal.
