Rear Door Sash Film

Replacement parts

Rear door sash film

Number of parts:2

Used place:Rear door sash film

1. Fully open the rear door glass.
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
3. Remove the following parts:
   1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
   2. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
   3. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
   4. Glass run channel
4. Peel off the rear door sash film by pulling it outward from one end.

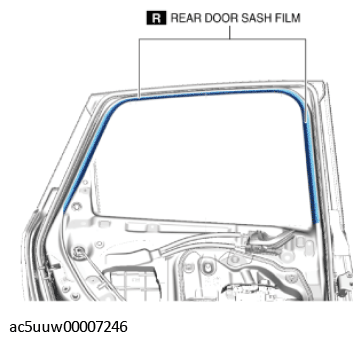

Fig 1: Peeling Rear Door Sash Film

Courtesy of MAZDA MOTORS CORP.
