Front Door Sash Film

Replacement parts

Front door sash film

Number of parts:2

Used place:Front door sash film

1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
3. Remove the following parts:
   1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
   2. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
   3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
   4. Glass run channel
4. Peel off the front door sash film by pulling it outward from one end.

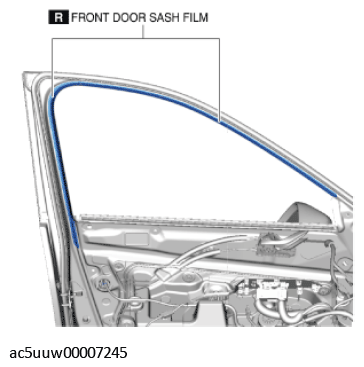

   Fig 1: Peeling Front Door Sash Film

   Courtesy of MAZDA MOTORS CORP.
