Rear Door Hinge Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear door (See REAR DOOR REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
  3. Remove the nut.

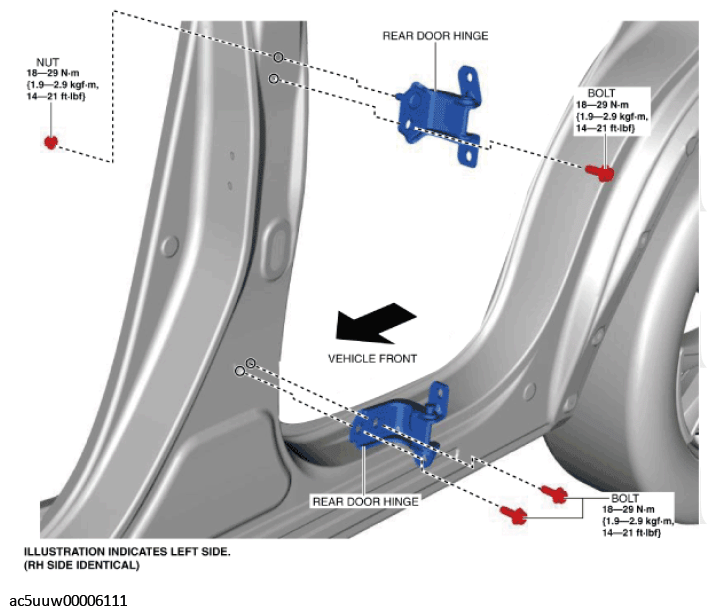

    Fig 1: Rear Door Hinge Nut With Torque Specifications
    G11425984Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Remove the rear door hinge.
  6. Install in the reverse order of removal.
  7. Adjust the rear door. (See DOOR ADJUSTMENT .)
