Rear Door Checker Removal/Installation

  1. Fully close the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Remove the bolt.

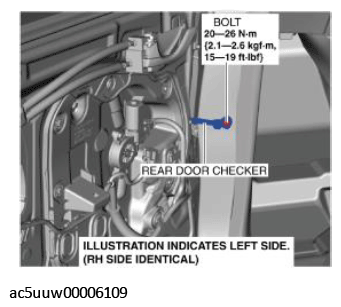

    Fig 1: Rear Door Speaker Bolt With Torque Specifications
    G11425982Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts.

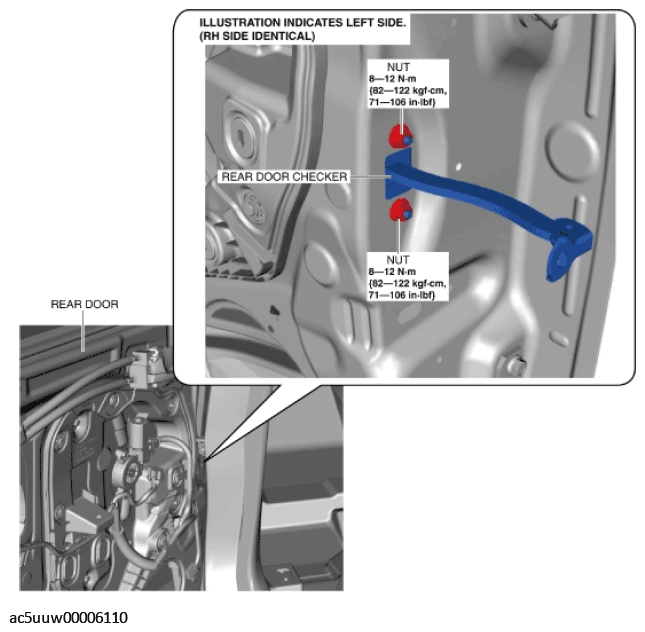

    Fig 2: Removing Rear Door Speaker Nuts
    G11425983Courtesy of MAZDA MOTORS CORP.
  7. Pull the rear door checker out of the rear speaker installation hole.
  8. Install in the reverse order of removal.
