Liftgate Removal/Installation: Notes

Replacement part

Inner liftgate grommet

Quantity: 2

Location of use: Liftgate

WARNING:

Removing the stay damper, liftgate hinge securing bolt, or liftgate without supporting the liftgate may cause the liftgate to fall off and injure you. When removing the stay damper, liftgate hinge, or liftgate, always use two persons to perform the work.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
Disconnect the connectors.

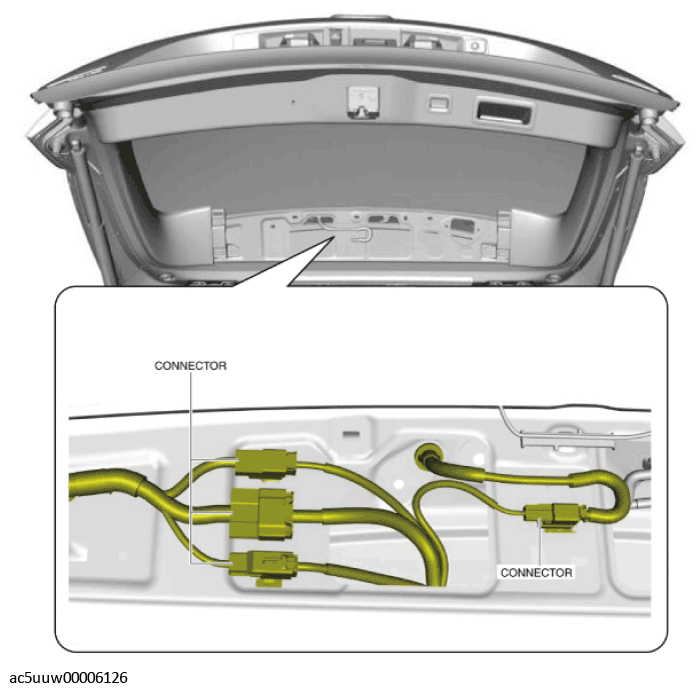

Fig 1: Disconnecting Liftgate Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness clip.

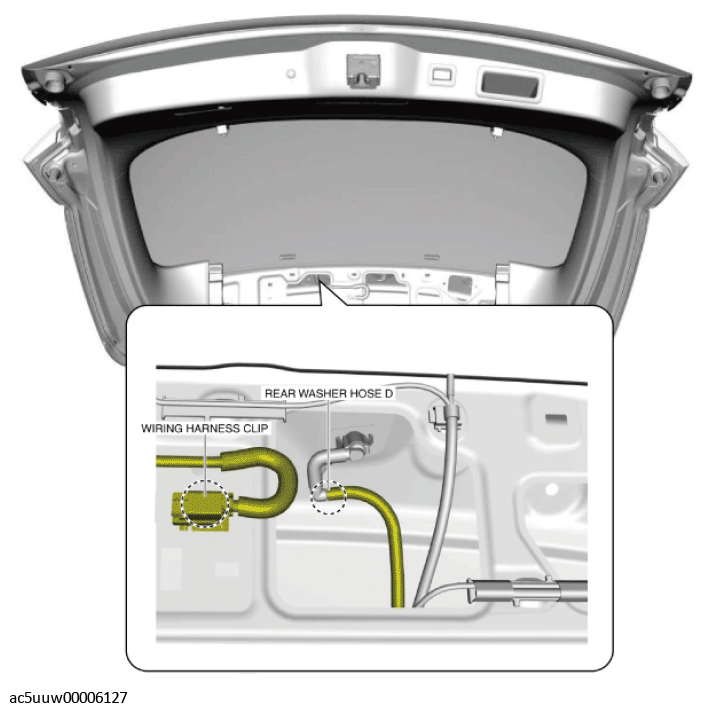

Fig 2: Removing Wiring Harness Clip
Courtesy of MAZDA MOTORS CORP.
Disconnect rear washer hose D.
Remove the fasteners.

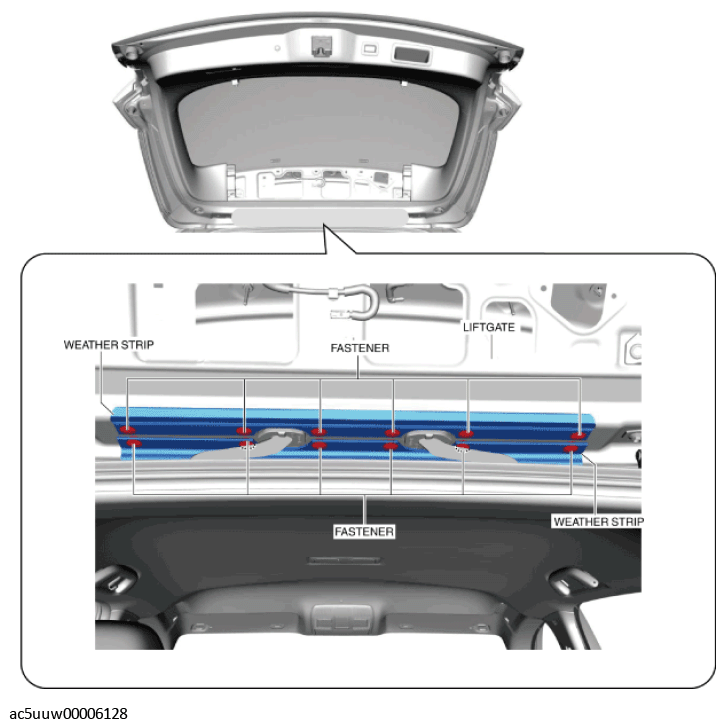

Fig 3: Removing Weatherstrips Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the weatherstrips.
Move the liftgate grommet in the directions of the arrows shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

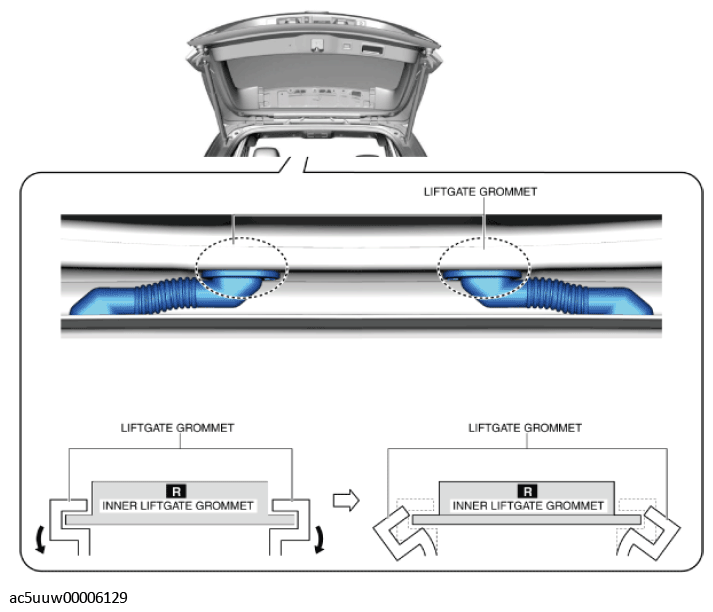

Fig 4: Moving Liftgate Grommet
Courtesy of MAZDA MOTORS CORP.
Using a remover tool, remove the inner liftgate grommet from the liftgate while pressing the tabs of the inner liftgate grommet in the order of arrows (1) and (2) shown in the figure. (See Liftgate Grommet Installation Note .)

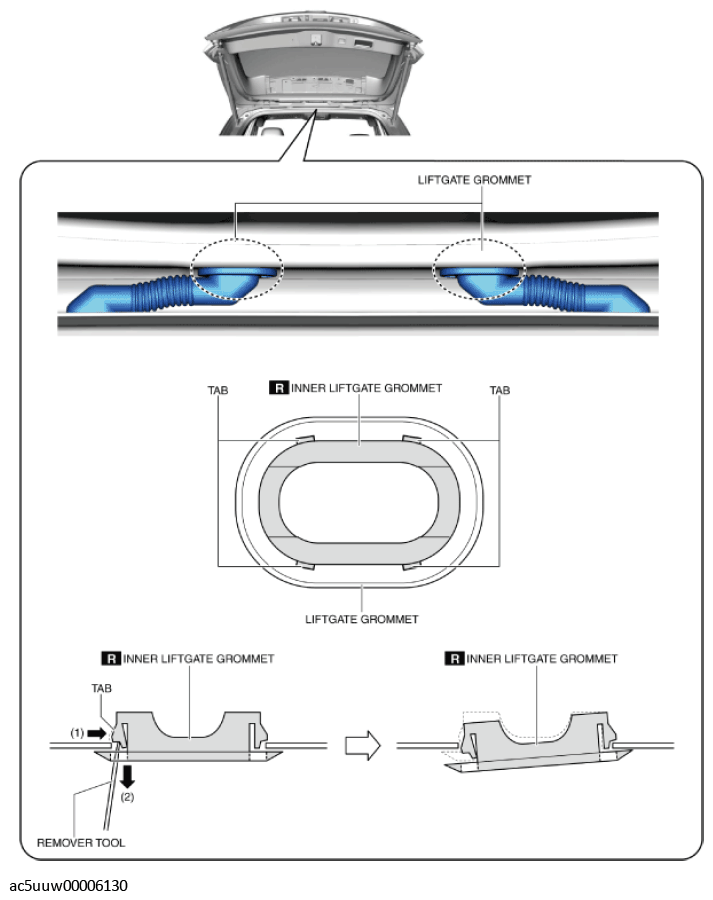

Fig 5: Pressing Tabs Of Inner Liftgate Grommet
Courtesy of MAZDA MOTORS CORP.
Using the remover tool, remove the stay damper securing band in the direction of the arrow shown in the figure.

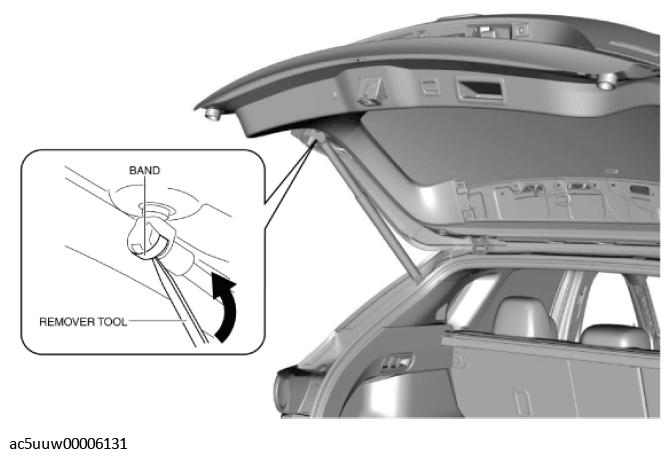

Fig 6: Removing Stay Damper Securing Band
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

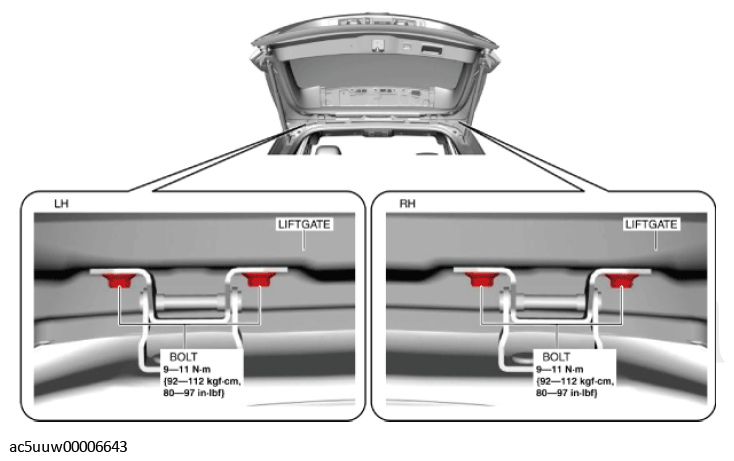

Fig 7: Removing Liftgate Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate.
Remove the stud balls. (Only when replacing stud balls)

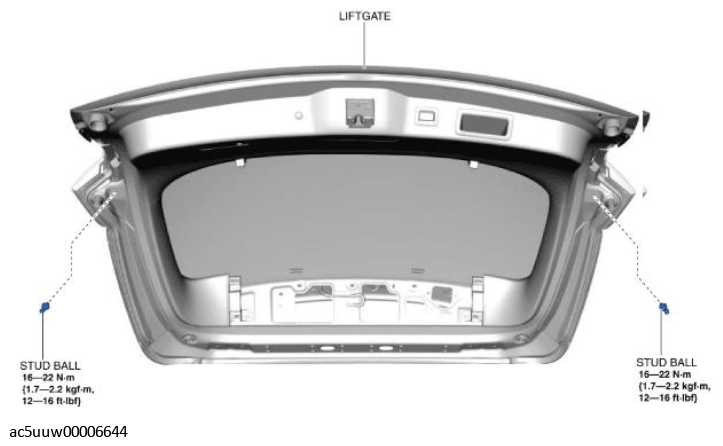

Fig 8: Removing Stud Balls
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)
