Front Door Checker Removal/Installation

Fully close the front door glass.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
To prevent scratches or damage, apply protective tape to the positions shown in the figure.

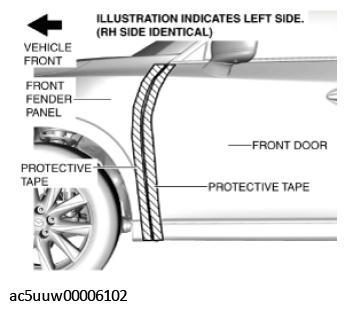

Fig 1: Front Door Protective Tape Applying Area
Courtesy of MAZDA MOTORS CORP.
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
Remove the bolt.

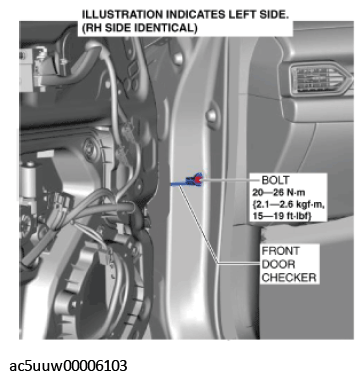

Fig 2: Front Door Checker Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

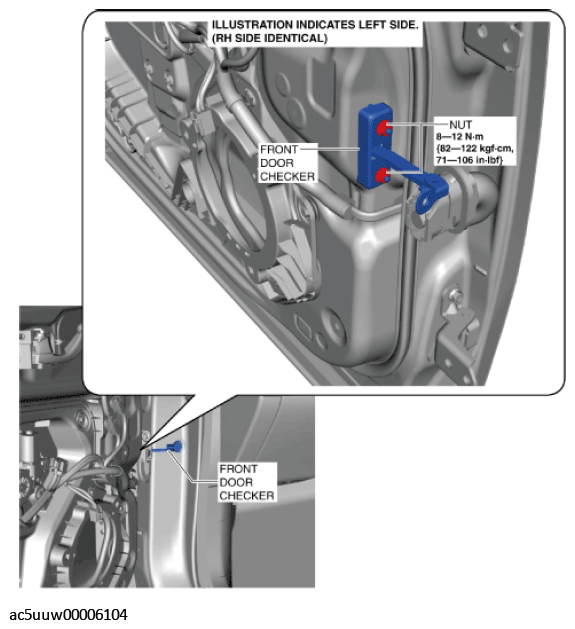

Fig 3: Front Door Checker Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Pull the front door checker out of the front speaker installation hole.
Install in the reverse order of removal.
