Rear Washer Nozzle Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Rear spoiler (See REAR SPOILER REMOVAL/INSTALLATION .)
- Disconnect the rear washer hose from the rear washer nozzle. (See REAR WASHER HOSE REMOVAL/INSTALLATION .)

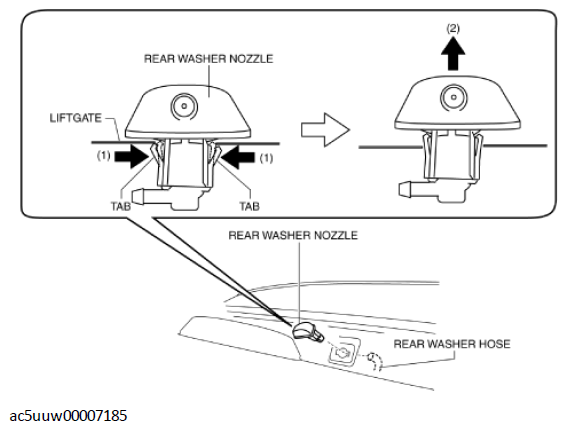

- While pressing tabs of the rear washer nozzle in the direction of the arrows (1) shown in the figure, pull the rear washer nozzle in the direction of the arrow (2) to remove it from the liftgate.
- Install in the reverse order of removal.
- Adjust the rear washer nozzle. (See REAR WASHER NOZZLE ADJUSTMENT .)
