Rear Washer Hose C: Notes

1. Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
5. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
7. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
8. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
9. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
10. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
12. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
13. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
14. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
15. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
16. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
17. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
18. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
19. Bass box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
20. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
21. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
22. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
23. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
24. Headliner (See HEADLINER REMOVAL/INSTALLATION .)

Without sunroof

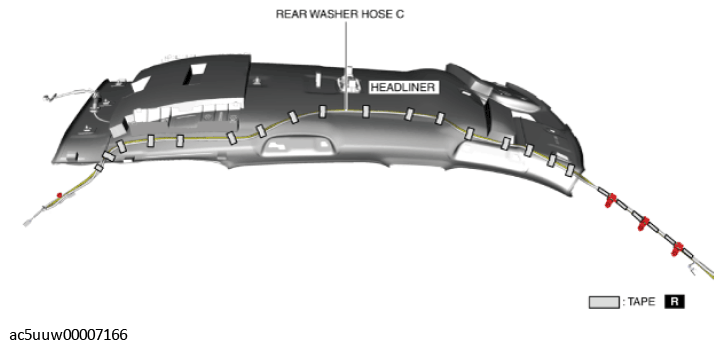

Fig 1: Removing Tape From Rear Washer Hose C (Without Sunroof)

Courtesy of MAZDA MOTORS CORP.

With sunroof

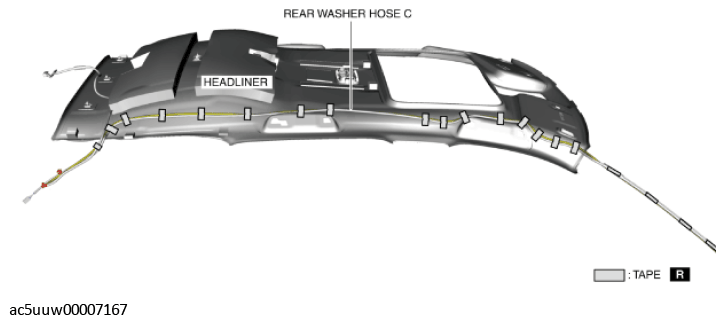

Fig 2: Removing Tape From Rear Washer Hose C (With Sunroof)

Courtesy of MAZDA MOTORS CORP.
