Rear washer hose C installation note

  1. When installing rear washer hose C to the headliner, install it aligning to the position shown in the figure.

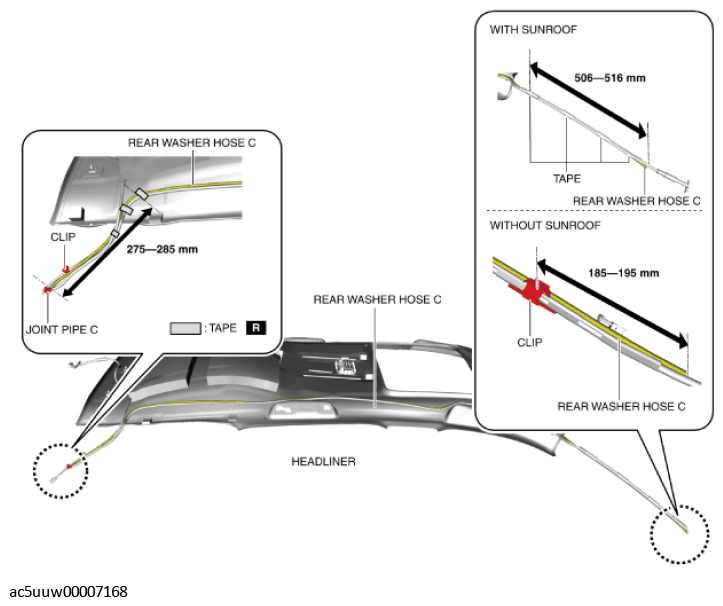

    Fig 1: Installing Rear Washer Hose C To Headliner
    G11426803Courtesy of MAZDA MOTORS CORP.
