Rear Washer Hose B

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front over fender (RH). (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  4. Disconnect the rear washer hose B from the joint pipe A.

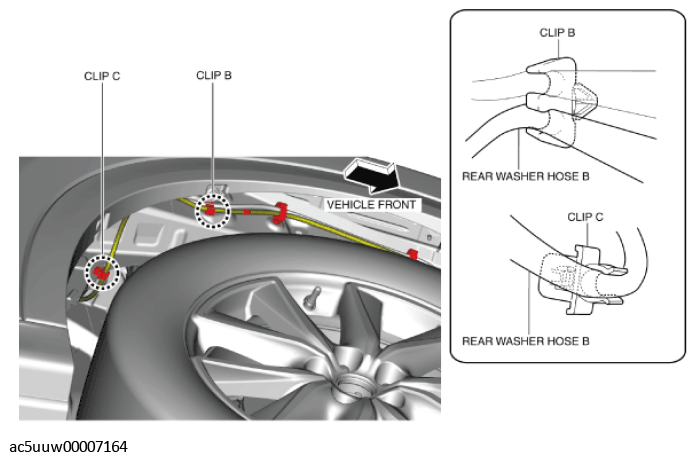

    Fig 1: Disconnecting Rear Washer Hose B From Joint Pipe A
    G11426799Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear washer hose B from clips B and C.
  6. Remove the following parts:
    1. Passenger-side Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    5. Tuner and amp unit (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
    6. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
  7. Remove the grommet from the body.

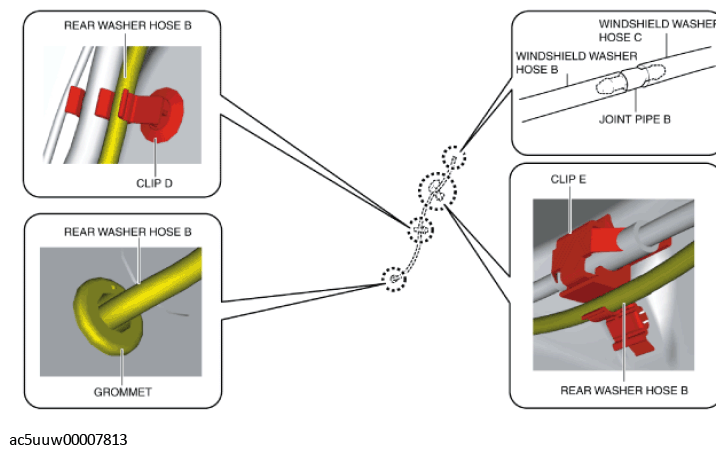

    Fig 2: Removing Grommet From Body
    G11426800Courtesy of MAZDA MOTORS CORP.
  8. Remove the rear washer hose B from clips D and E.
  9. Disconnect the rear washer hose B from the joint pipe B.
  10. Install in the reverse order of removal.
