GPS Antenna Feeder Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
2. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
4. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
5. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
6. GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
7. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
Remove the wiring harness clips at the positions shown in the figure.

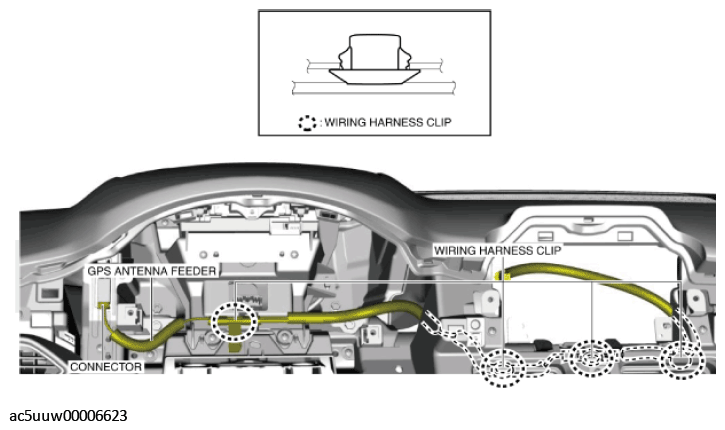

Fig 1: Removing GPS Antenna Feeder Wiring Harness Clips
Courtesy of MAZDA MOTORS CORP.
Remove the GPS antenna feeder.
Install in the reverse order of removal.
