Global Positioning System (GPS) Antenna Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
2. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
4. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
5. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
Remove the screw.

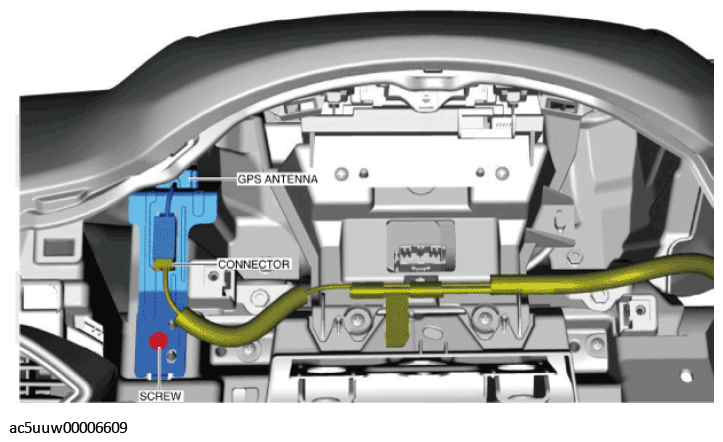

Fig 1: Locating Global Positioning System Antenna Screw
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the GPS antenna.
Install in the reverse order of removal.
