Antenna Feeder No. 1 Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    6. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
    7. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
  3. Disconnect antenna feeder No. 1.

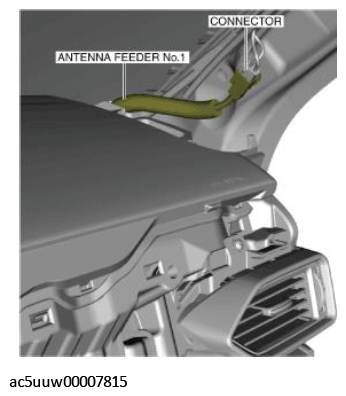

    Fig 1: Disconnecting Antenna Feeder No
    G11425999Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between antenna feeder No. 1 terminals is as indicated in the table.
    Fig 2: Checking Continuity Between Antenna Feeder No. 1
    G11426000Courtesy of MAZDA MOTORS CORP.
    Fig 3: Antenna Feeder No. 1 Terminals Continuity Chart
    G11426001Courtesy of MAZDA MOTORS CORP.
