Antenna Feeder No. 1 Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    3. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    6. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
    7. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

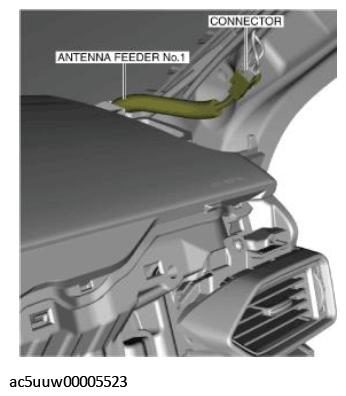

    Fig 1: Disconnecting Negative Battery Terminal
    G11426002Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clips A and wiring harness clips B.

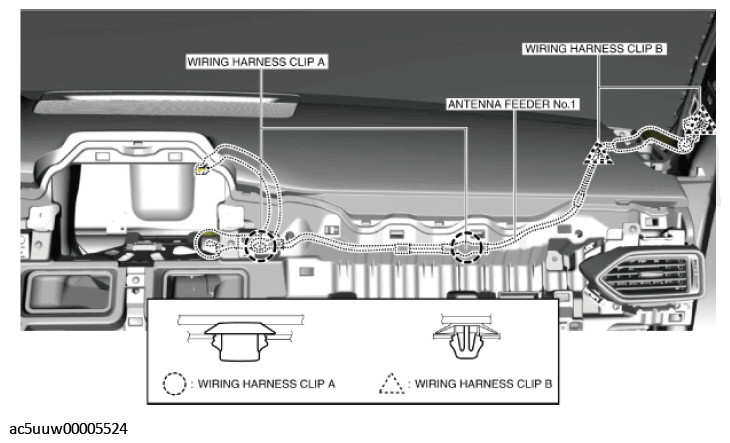

    Fig 2: Removing Wiring Harness Clips A And Wiring Harness Clips B
    G11426003Courtesy of MAZDA MOTORS CORP.
  5. Remove the antenna feeder No. 1.
  6. Install in the reverse order of removal.
