Vanity Mirror Illumination Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION .)
3. Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.

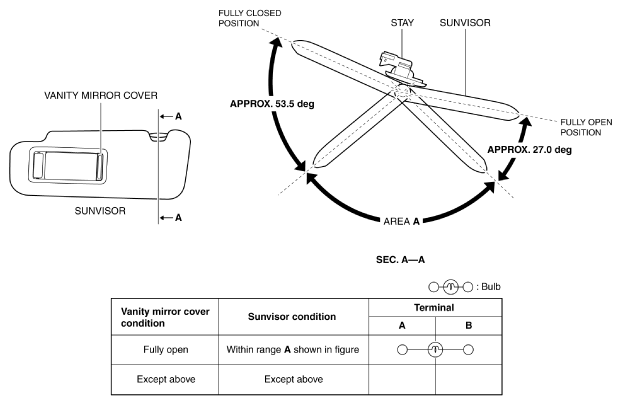

Fig 1: Vanity Mirror Illumination Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Stay-Side Switch And Cover-Side Switch Circuit

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the vanity mirror illumination bulb or the sunvisor. (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .) (See SUNVISOR REMOVAL/INSTALLATION .)
