Vanity Mirror Illumination Bulb Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Insert the remover tool into the service hole at the position shown in the figure.

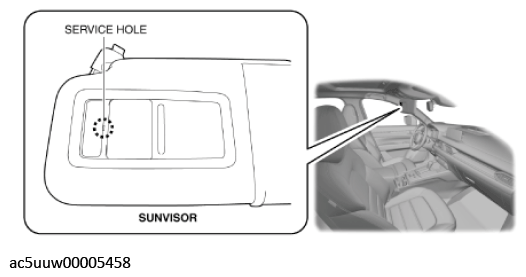

Fig 1: Remover Tool Insertion Position At Sunvisor Service Hole
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure to detach the lens tabs from the sunvisor.

Fig 2: Detaching Lens Tabs From Sunvisor Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Remove the lens.

Fig 3: Lens And Vanity Mirror Illumination Bulb
Courtesy of MAZDA MOTORS CORP.
Remove the vanity mirror illumination bulb.
Install in the reverse order of removal.
