Smart City Brake Support (SCBS) Location Index

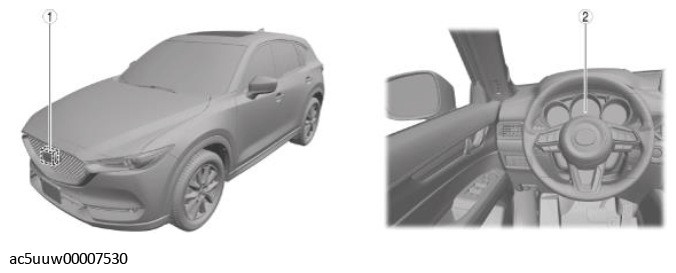

Fig 1: Smart City Brake Support (SCBS) Parts Location

G11432236

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1

RADAR UNIT
(See RADAR UNIT REMOVAL/INSTALLATION .)
(See RADAR UNIT DISASSMBLY/ASSEMBLY .)
(See RADAR UNIT AIMING .)
(See RADAR UNIT INSPECTION .)

2

Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See INSTRUMENT CLUSTER INSPECTION .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
(See INSTRUMENT CLUSTER OPERATION RECORD .)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See INSTRUMENT CLUSTER DATA RESET PROCEDURE .)
