Smart Brake Support (SBS) Location Index

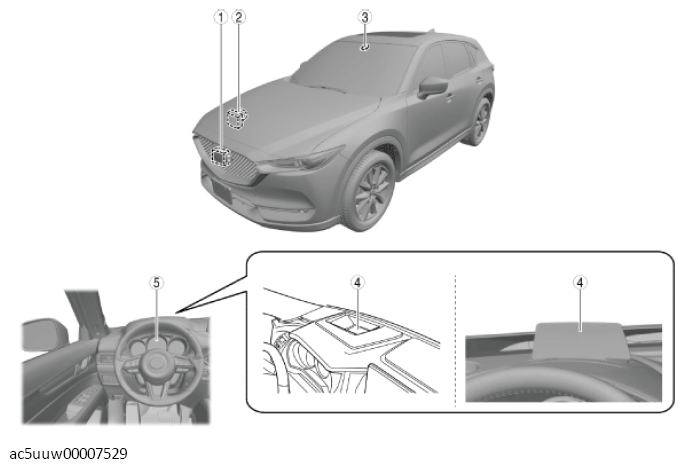

Fig 1: Smart Brake Support (SBS) Parts Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	RADAR UNIT (See RADAR UNIT REMOVAL/INSTALLATION .) (See RADAR UNIT DISASSMBLY/ASSEMBLY .) (See RADAR UNIT AIMING .) (See RADAR UNIT INSPECTION .)
2	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .) (See DSC HU/CM INSPECTION .)
3	FORWARD SENSING CAMERA (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) AIMING .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD .)
4	Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
5	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER OPERATION RECORD .) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE .)
