Distance Recognition Support System (DRSS) Location Index

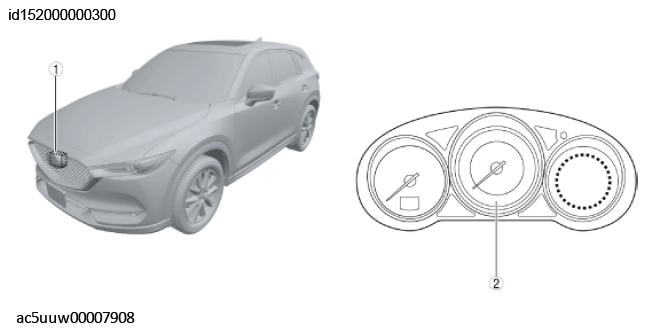

Fig 1: Distance Recognition Support System (DRSS) Parts Location

G11432191

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1

Radar unit
(See RADAR UNIT REMOVAL/INSTALLATION .)
(See RADAR UNIT DISASSMBLY/ASSEMBLY .)
(See RADAR UNIT AIMING .)
(See RADAR UNIT INSPECTION .)
(See MRCC INITIALIZATION SETTING .)

2

INSTRUMENT CLUSTER
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See INSTRUMENT CLUSTER INSPECTION .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See MAINTENANCE MONITOR OPERATION PROCEDURE .)
