Radar test procedure (reflector)

  1. Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools.
  2. Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION .)
  3. Park the vehicle on level ground.
    CAUTION:
    • If the setting surface height and angle between the vehicle and the SST (reflector) differs, correct radar aiming cannot be done. Perform the radar aiming with the vehicle and SST (reflector) set on level ground.
      Fig 1: Parking Vehicle On Level Ground
      G11432176Courtesy of MAZDA MOTORS CORP.
    • Verify that there are no obstructions which interfere with radar emissions such as metal objects in the radar emission area shown in the figure.
  4. Verify that there are no obstructions which interfere with radar emissions such as metal objects in the radar emission area shown in the figure.
    CAUTION:
    • If the radar aiming is performed in the shaded area show in the figure with obstructions such as covered drain gutters in the floor or other metal reflective objects, it could result in the radar aiming not being performed correctly. Move all obstructions out of the area, and when performing the radar aiming, do not have personnel standing in the area.

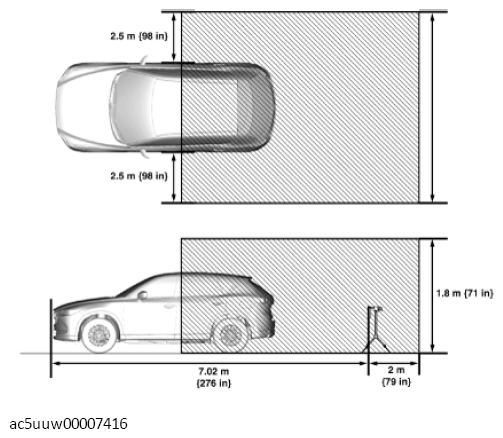

    Fig 2: Radar Emissions Metal Objects In Radar Emission Area
    G11432177Courtesy of MAZDA MOTORS CORP.
  5. Perform the DTC inspection for the blind spot monitoring (BSM) control module using the M-MDS and verify that no DTCs are displayed. (See DTC INSPECTION [BLIND SPOT MONITORING (BSM) CONTROL MODULE] .)
    NOTE:
  6. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.
    Fig 3: Marking Center Position (Point A) On Floor Surface
    G11432164Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The center of the brand emblem indicates the center position of the vehicle.
  7. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.
    Fig 4: Marking Center Position (Point B) On Floor Surface
    G11432165Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The center of the brand emblem indicates the center position of the vehicle.
  8. Secure the end of the leveling line over point A.
    NOTE:
    • Use a commercially-available leveling line.
    Fig 5: Securing End Of Leveling Line Over Point A
    G11432166Courtesy of MAZDA MOTORS CORP.
  9. Pull the unsecured end of the leveling line over the vehicle and to the rear and adjust it so that passes over point B.
  10. Mark the line (position C) within the range of 156.7-158.3 m {61.70-62.32 in} from point A and in the direction rearward of the vehicle.

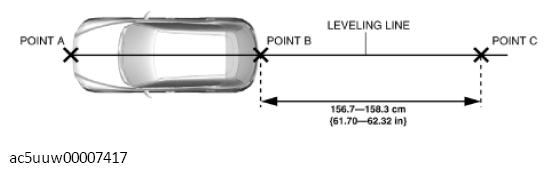

    Fig 6: Vehicle Direction Rearward Mark Line Point A
    G11432181Courtesy of MAZDA MOTORS CORP.
  11. Mark the points (points D and E) (SST (reflector) installation reference points) 171.2-172.8 cm {67.41-68.03 in} from point C on the line which runs perpendicular to the vehicle center line (SST (reflector) installation reference point).

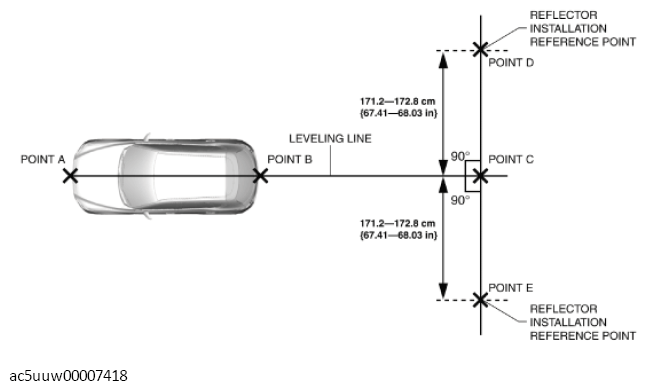

    Fig 7: Vehicle Center Line (SST; Doppler Simulator Installation Reference Point)
    G11432182Courtesy of MAZDA MOTORS CORP.
  12. Pull the connected points D, C and E lines (SST (reflector) installation line).
  13. Install the SST (reflector and plum bob) to the SST (tripod).
    Fig 8: Installing SST (Reflector And Plum Bob) To SST (Tripod)
    G11432183Courtesy of MAZDA MOTORS CORP.
  14. Level the SST (reflector) by adjusting the leveling bubble on the SST (tripod) so that it is centered on the bubble reference line.
    Fig 9: Adjusting Leveling Bubble On SST (Tripod) Centered On Bubble Reference Line
    G09786806Courtesy of MAZDA MOTORS CORP.
  15. Adjust so that the height of the SST (reflector) from the floor surface is 83.3 cm {32.8in}.
  16. Align so that the SST (Plum-bob) installation line and the SST stand (Reflector) are level at the center of point D or point E.

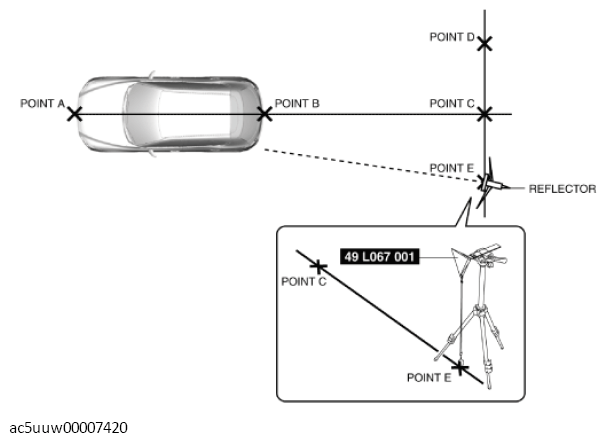

    Fig 10: Aligning SST (Plum-Bob) Installation Line And SST Stand (Reflector) Level
    G11432185Courtesy of MAZDA MOTORS CORP.
  17. Adjust the reflecting surface of the SST (reflector) so that it faces the radar emission surface (near a rear bumper corner) of BSM control module.
  18. Perform the radar test using the M-MDS.
  19. Connect the M-MDS (IDS) to DLC-2.
  20. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    1. "Electrical"
    2. "BSM test"
    3. "Aiming by using Reflector"
  21. Select either the left or right blind spot monitoring (BSM) control module and perform the radar test according to the instructions on the M-MDS screen.
  22. Verify the M-MDS display.
    • If "TEST PASSED" is displayed
      • Radar test is completed
    • If "TEST FAILED" is displayed
      • Perform an inspection according to the following table.
    Step Inspection Action
    1 VERIFY REFLECTOR POSITION
    • Verify if the reflector installation position is correct.
    • Is the reflector set in the correct position?
    		 Yes Go to the next step.
    No Set the reflector in the correct position and perform the BSM radar test.
    2 INSPECT REAR BUMPER Yes Replace the rear bumper and perform the BSM radar test.
    (See REAR BUMPER REMOVAL/INSTALLATION .)
    No Go to the next step.
    3 VERIFY IF BSM CONTROL MODULE IS MIS-INSTALLED AND IF THERE IS DISTORTION TO VEHICLE INSTALLATION SURFACE
    • Verify whether a BSM control module has been mis-installed, and if there is distortion to the vehicle installation surface.
    • Is there poor installation or distortion?
    		 Yes Repair or replace the malfunctioning part and perform the BSM radar test.
    No Go to the next step.
    4 RE-PERFORM THE BSM RADAR TEST
    • Perform the BSM radar test.
    • Repeat the M-MDS operation for the BSM radar test 2 or 3 times (Steps 22 to 23).
    • Is "Procedure completed correctly." displayed?
    		 Yes BSM radar test is completed.
    No Replace the BSM control module.
    (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION .)
