Radar test procedure (doppler simulator): Notes

  1. Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools equipped on the vehicle.
  2. Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION .)
  3. Park the vehicle on level ground.
    CAUTION:
    • If the setting surface height and angle between the vehicle and the SST (reflector) differs, a correct radar test cannot be done. Perform the radar test with the vehicle and SST (reflector) set on level ground.

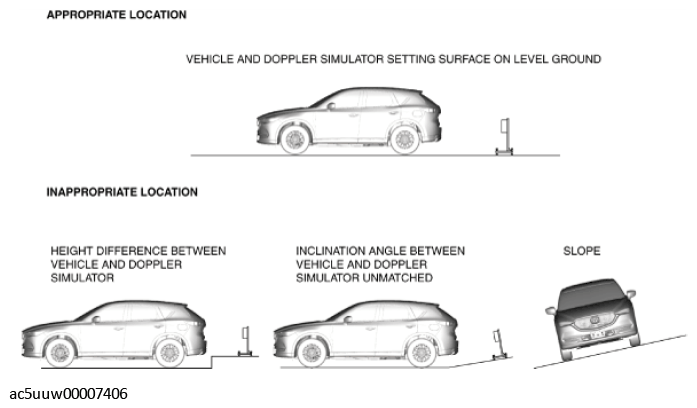

    Fig 1: Park Vehicle On Level Ground
    G11432162Courtesy of MAZDA MOTORS CORP.
  4. Verify that there are no obstructions which interfere with radar emissions such as metal objects in the radar emission area shown in the figure.
    CAUTION:
    • If the radar test is performed in the shaded area shown in the figure with obstructions such as covered drain gutters in the floor or other metal reflective objects, it could result in the radar test not being performed correctly. Move all obstructions out of the area, and when performing the radar test, do not have personnel standing in the area.

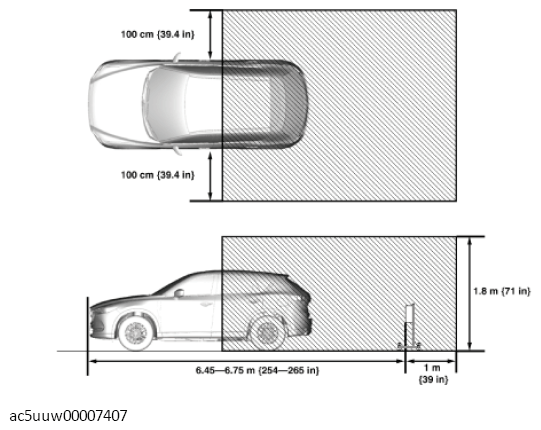

    Fig 2: Radar Emissions Metal Objects In Radar Emission Area
    G11432163Courtesy of MAZDA MOTORS CORP.
  5. Using the M-MDS, perform a DTC inspection of the BSM control modules and verify that no DTCs are displayed. (See DTC INSPECTION [BLIND SPOT MONITORING (BSM) CONTROL MODULE] .)
    NOTE:
  6. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.

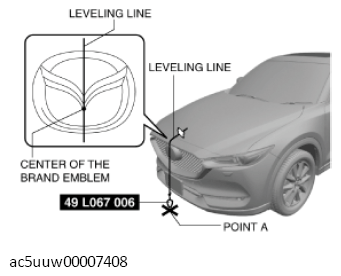

    Fig 3: Marking Center Position (Point A) On Floor Surface
    G11432164Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The center of the brand emblem indicates the center position of the vehicle.
  7. Adjust the SST (plum-bob) so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.

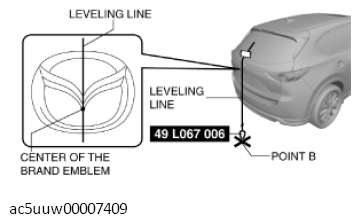

    Fig 4: Marking Center Position (Point B) On Floor Surface
    G11432165Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The center of the brand emblem indicates the center position of the vehicle.
  8. Secure the end of the leveling line over point A.
    NOTE:
    • Use a commercially-available leveling line.

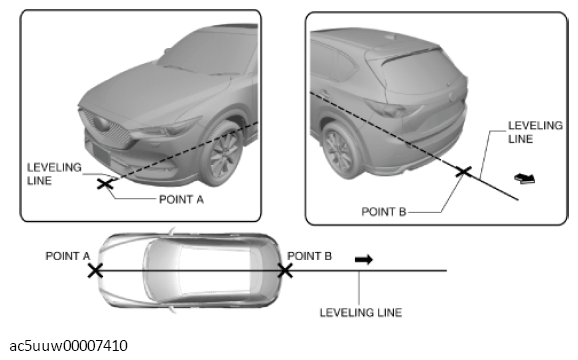

    Fig 5: Securing End Of Leveling Line Over Point A
    G11432166Courtesy of MAZDA MOTORS CORP.
  9. Pull the unsecured end of the leveling line over the vehicle and to the rear and adjust it so that passes over point B.
  10. Mark the line (position C) within the range of 6.45-6.75 m {254-265 in} from point A and in the direction rearward of the vehicle.

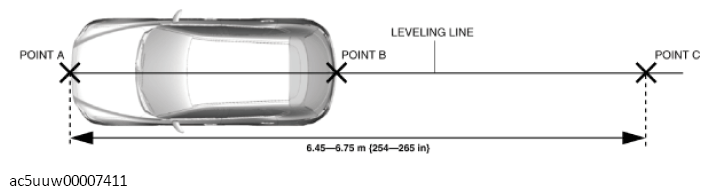

    Fig 6: Vehicle Direction Rearward Mark Line Point A
    G11432167Courtesy of MAZDA MOTORS CORP.

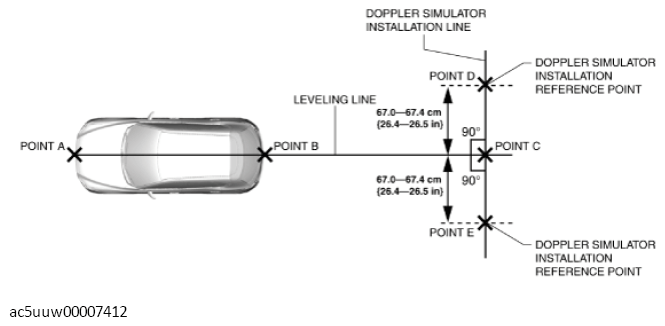

  11. Mark the points (points D and E) (SST (Doppler simulator) installation reference points) 67.0-67.4 cm {26.4-26.5 in} from point C on the line which runs perpendicular to the vehicle center line (SST (Doppler simulator) installation reference point).
    Fig 7: Vehicle Center Line (SST; Doppler Simulator Installation Reference Point)
    G11432168Courtesy of MAZDA MOTORS CORP.
  12. Pull the connected points D, C and E lines (SST (Doppler simulator) installation line).
  13. Insert the SST (AC-DC converter) into the side of the SST (Doppler simulator) and turn on the power.
    Fig 8: Inserting SST (AC-DC Converter) Into Side Of SST (Doppler Simulator)
    G11432169Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Verify that the green lamp on the SST (Doppler simulator) unit illuminates.
    Fig 9: Locating Green Lamp On SST (Doppler Simulator) Unit
    G11432170Courtesy of MAZDA MOTORS CORP.
  14. Loosen the fixing knobs on the side of the SST (Doppler simulator) and adjust the height of the SST (Doppler simulator) so that the height is between 84-86 cm {33.1-33.8 in} from the floor.
    Fig 10: Adjusting Height Of SST (Doppler Simulator)
    G11432171Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the knobs are loosened excessively, the SST (Doppler simulator) could fall and become damaged. Support the SST (Doppler simulator) with one hand while loosening the fixing knobs.
  15. Level the SST (Doppler simulator) by turning the SST (Doppler simulator) adjustment knobs and adjust so that the leveling bubble is centered on the reference line.
    Fig 11: Adjusting Leveling Bubble Centered On Reference Line
    G11432172Courtesy of MAZDA MOTORS CORP.
  16. Drop the SST (plum bob) to the floor along the reference line printed on the SST (Doppler simulator).
    Fig 12: Drop SST (Plum Bob) To Floor Along Reference Line Printed On SST (Doppler Simulator)
    G11432173Courtesy of MAZDA MOTORS CORP.
  17. Align point D or point E with the end of the SST (plum bomb).

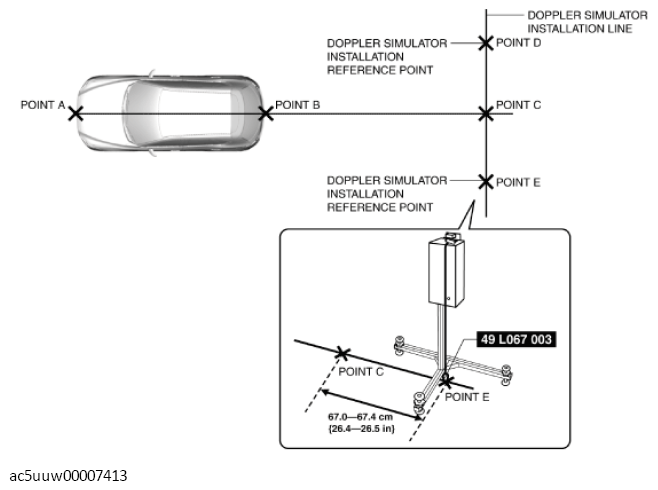

    Fig 13: Aligning Point D And Point E With End Of SST (Plum Bomb)
    G11432174Courtesy of MAZDA MOTORS CORP.
  18. Align so that the SST (Doppler simulator) installation line and the SST stand (Doppler simulator) are level at the center of point D or point E.

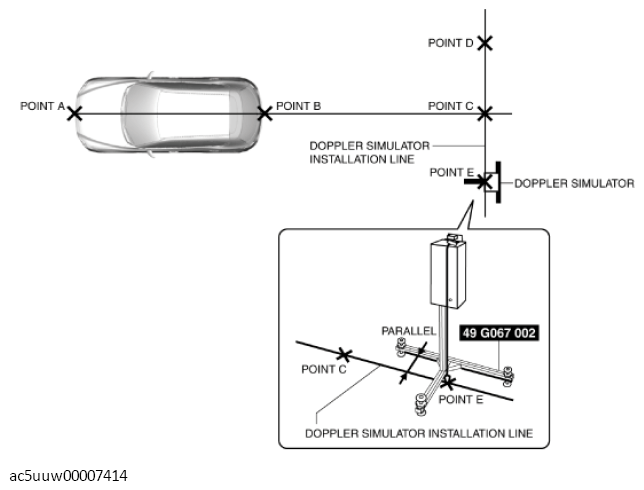

    Fig 14: Aligning SST (Doppler Simulator) Installation Line And SST Stand (Doppler Simulator) Level
    G11432175Courtesy of MAZDA MOTORS CORP.
  19. Remove the SST (plum bob).
  20. Perform the radar test using the M-MDS.
  21. Connect the M-MDS (IDS) to DLC-2.
  22. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    1. "Electrical"
    2. "BSM test"
    3. "Aiming by using Doppler"
  23. Select either the left or right rear BSM control module and perform the radar test according to the instructions on the M-MDS screen.
  24. Select either the left or right blind spot monitoring (BSM) control module and perform the radar test according to the instructions on the M-MDS screen.
  25. Verify the M-MDS display.
    • If "Procedure completed successfully" is displayed
      • The radar aiming procedure is complete
    • If "This test found error." Or, "Procedure not completed successfully" is displayed.
      • Perform an inspection according to the following table.
    Step Inspection Action
    1 DOPPLER SIMULATOR POSITION SET VERIFICATION
    • Verify if the Doppler simulator installation position is correct.
    • Is the Doppler simulator set in the correct position?
    		 Yes Go to the next step.
    No Set the Doppler simulator in the correct position and perform the blind spot monitoring (BSM) radar aiming.
    2 INSPECT REAR BUMPER
    • Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION .)
    • Perform the blind spot monitoring (BSM) radar aiming procedure.
    • Is "Procedure completed successfully." displayed?
    		 Yes Replace the rear bumper and perform the BSM radar aiming procedure.
    (See REAR BUMPER REMOVAL/INSTALLATION .)
    No Go to the next step.
    3 VERIFY IF BSM CONTROL MODULE OR BSM BRACKET IS MIS-INSTALLED AND IF THERE IS DISTORTION TO VEHICLE INSTALLATION SURFACE
    • Verify whether a BSM control module or BSM bracket has been mis-installed, and if there is distortion to the vehicle installation surface.
    • Is there poor installation or distortion?
    		 Yes Repair or replace the malfunctioning part and perform the BSM radar aiming procedure.
    No Go to the next step.
    4 REPEAT REAR MONITORING RADAR AIMING
    • Perform the blind spot monitoring (BSM) radar aiming procedure.
    • Repeat the M-MDS operation for the blind spot monitoring (BSM) radar aiming 2 or 3 times (Steps 22 to 25).
    • Is "Procedure completed correctly." displayed?
    		 Yes The blind spot monitoring (BSM) radar aiming is completed.
    No Replace the applicable blind spot monitoring (BSM) control module.
