Front Fender Stay (RH)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Seal board upper (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  3. Remove the fastener.

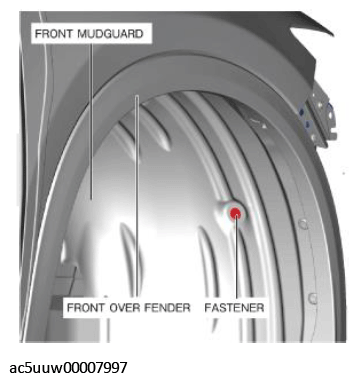

Fig 1: Removing Front Fender Stay Fastener
G11425867Courtesy of MAZDA MOTORS CORP.
  1. Remove the ground bolts.

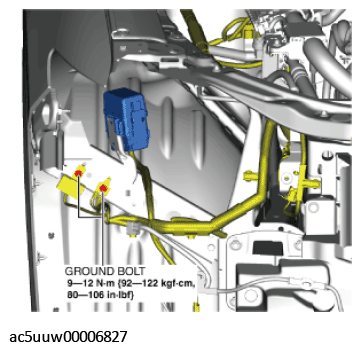

    Fig 2: Removing Ground Bolts
    G11425868Courtesy of MAZDA MOTORS CORP.
  2. Remove the grounds.
  3. Remove the bolts.

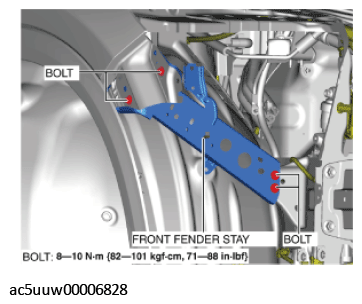

    Fig 3: Removing Front Fender Stay Bolts
    G11425869Courtesy of MAZDA MOTORS CORP.
  4. Remove the front fender stay (LH).
  5. Install in the reverse order of removal. (See FRONT FENDER STAY PAINT NOTE .)
