Front Fender Stay Paint Note

CAUTION:

If the bolt contact area is painted when the front fender stay is newly replaced, it could cause a malfunction in the PCM. Before painting a newly replaced part, protect the bolt contact areas with masking tape.

NOTE:

After installing the bolt, apply touch-up paint to the exposed base material area of the front fender stay.

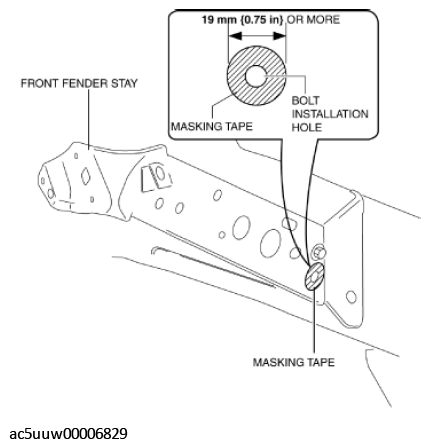

Fig 1: Protecting Bolt Contact Areas With Masking Tape

Courtesy of MAZDA MOTORS CORP.
