Rear Door Speaker Removal/Installation

CAUTION:
  • If the procedure is performed while holding the rear door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

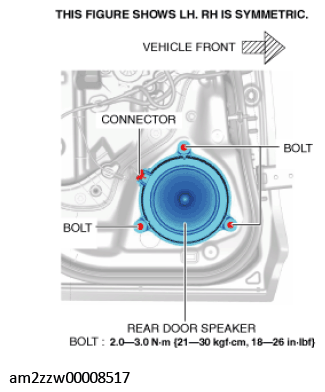

    Fig 1: Removing Rear Door Speaker Bolts
    G11434034Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Pull the rear door speaker in the direction of arrow (1) shown in the figure and remove it while detaching the pins.

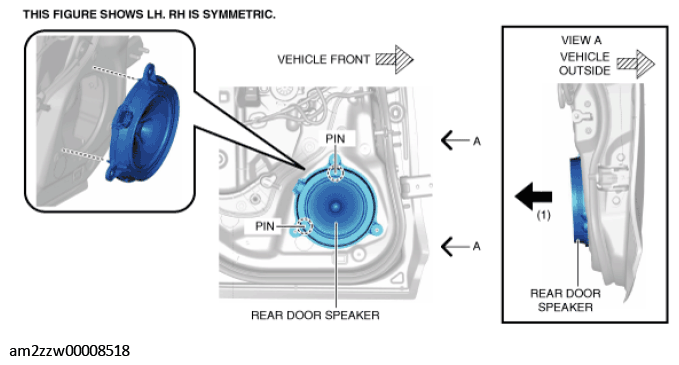

    Fig 2: Detaching Rear Door Speaker Pins
    G11434035Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
