Global Positioning System (GPS) Antenna Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Instrument cluster (with active driving display) (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  3. Remove the screw.

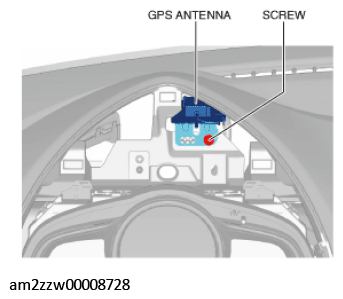

    Fig 1: Removing GPS Antenna Screw
    G11434026Courtesy of MAZDA MOTORS CORP.
  4. Pull out the GPS antenna and disconnect the connector.

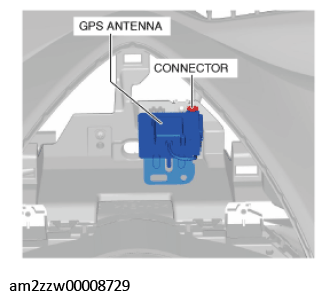

    Fig 2: Disconnecting Connector
    G11434027Courtesy of MAZDA MOTORS CORP.
  5. Remove the GPS antenna.
  6. Install in the reverse order of removal.
