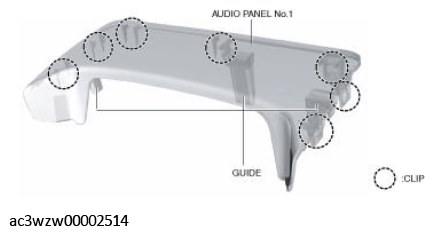

Audio panel No. 1 connection parts view

Fig 1: View Of Audio Panel No. 1 Connection Parts

Courtesy of MAZDA MOTORS CORP.

CAUTION:

• If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

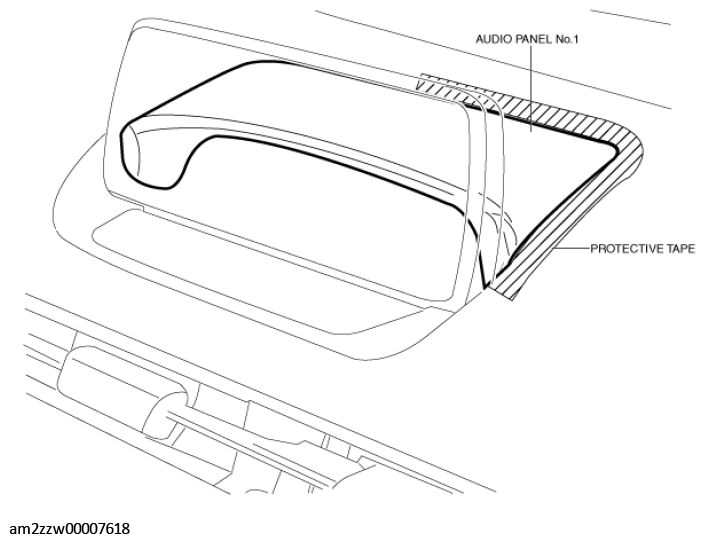

1. To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.
   Fig 2: Affixing Protective Tape To Dashboard Position

   Courtesy of MAZDA MOTORS CORP.
2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

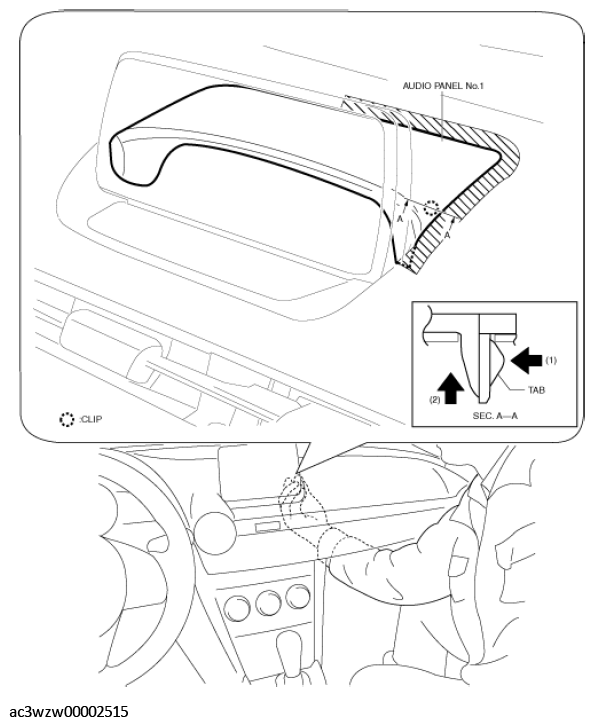

3. Insert your hand from the glove compartment opening and while pressing the clip tab in the direction of arrow (1), move the clip in the direction of arrow (2) to detach the clip from the dashboard, and assure a clearance to insert the remover tool.
   Fig 3: Pressing Clip Tab

   Courtesy of MAZDA MOTORS CORP.
4. Insert the remover tool into the clearance assured in Step  3, move the remover tool in the direction of the arrow shown in the figure and lift audio panel No. 1 up.
   Fig 4: Lifting Audio Panel No. 1 Up

   Courtesy of MAZDA MOTORS CORP.

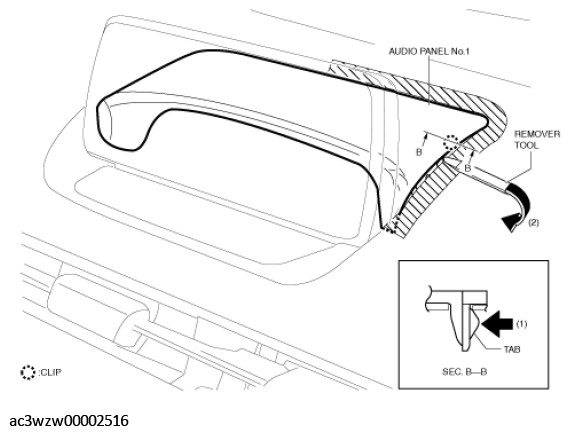

5. Insert the remover tool into the position shown in the figure.
   Fig 5: Inserting Remover Tool Into Position

   Courtesy of MAZDA MOTORS CORP.

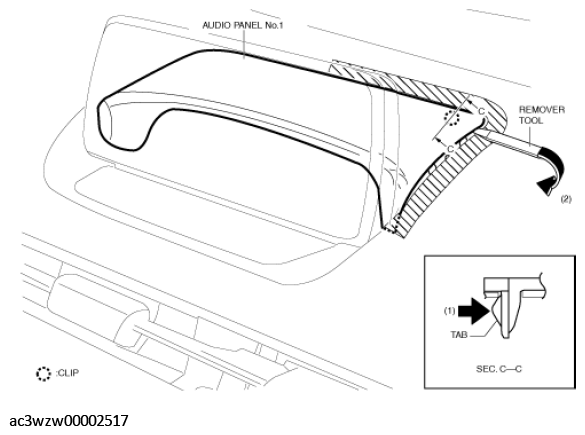

6. Insert your hand through the glove compartment opening and while pressing the clip tab in the direction of arrow (1) shown in the figure, move the remover tool in the direction of arrow (2) and detach the clip from the dashboard.

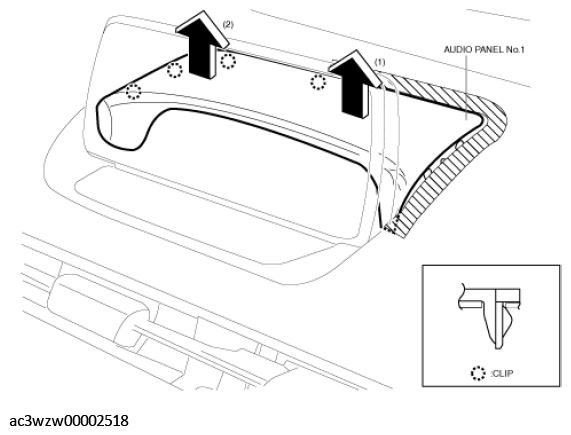

7. Remove audio panel No. 1 by pulling it in the direction of the arrow shown in the figure.
   Fig 6: Removing Audio Panel No. 1

   Courtesy of MAZDA MOTORS CORP.
8. Install in the reverse order of removal.
