Rear Side

Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
WARNING:
- Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.

Fig 1: Removing Double-Sided Adhesive Tape
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure and detach the rear door garnish clips from the rear door.

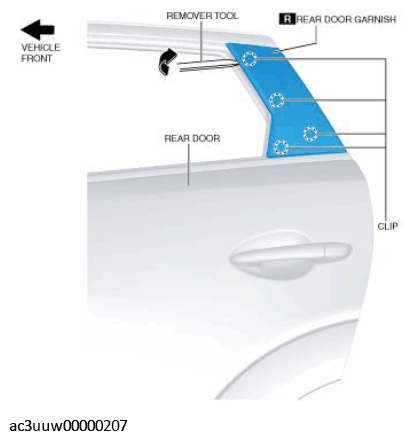

Fig 2: Detaching Rear Door Garnish Clips From Rear Door
Courtesy of MAZDA MOTORS CORP.
Remove the rear door garnish.
