Rear Sash Molding Removal

Remove the following parts:
1. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
2. Rear door garnish (front) (See REAR DOOR GARNISH REMOVAL .)
3. Rear door garnish (rear) (See REAR DOOR GARNISH REMOVAL .)
WARNING:
- Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

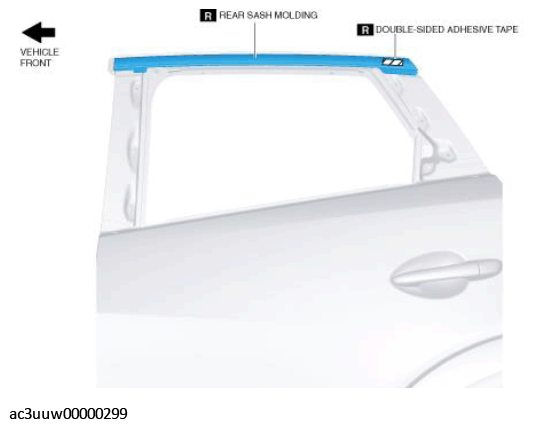

Peeling off the double-sided adhesive tape shown in the figure using a utility knife.

Fig 1: Peeling Off Double-Sided Adhesive Tape
Courtesy of MAZDA MOTORS CORP.

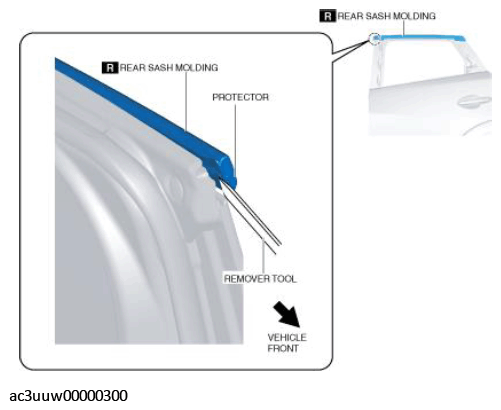

Insert the remover tool in the position shown in the figure.

Fig 2: Inserting Rear Sash Molding Remover Tool
Courtesy of MAZDA MOTORS CORP.

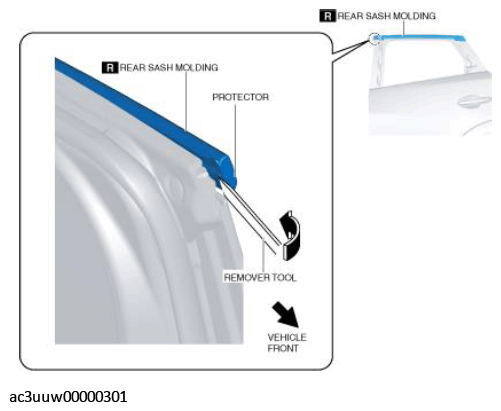

Move the remover tool in the direction of the arrow shown in the figure and detach the protector.

Fig 3: Detaching Protector
Courtesy of MAZDA MOTORS CORP.

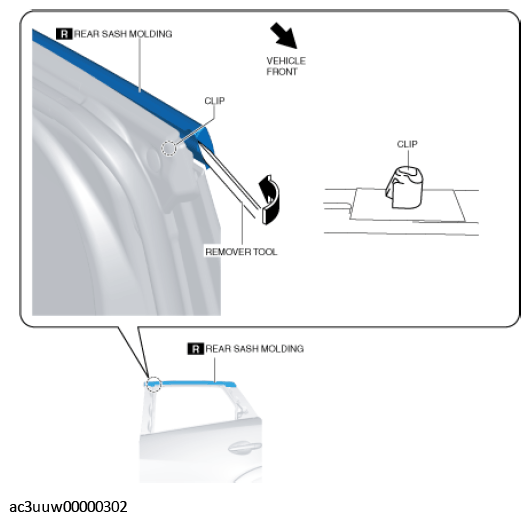

Move the remover tool in the direction of the arrow shown in the figure and detach the rear sash molding clip from the rear door.

Fig 4: Detaching Rear Sash Molding Clip From Rear Door
Courtesy of MAZDA MOTORS CORP.

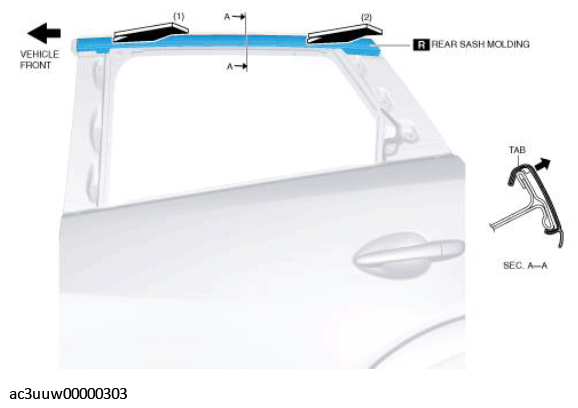

Pull the rear sash molding in the direction of the arrows in the order shown in the figure and detach the rear sash molding tab from the rear door.

Fig 5: Detaching Rear Sash Molding Tab From Rear Door
Courtesy of MAZDA MOTORS CORP.
Remove the rear sash molding.
