Front Door Garnish Removal
- Remove the sail garnish. (See SAIL GARNISH REMOVAL .)
- Remove the front beltline molding. (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
WARNING:
- Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.

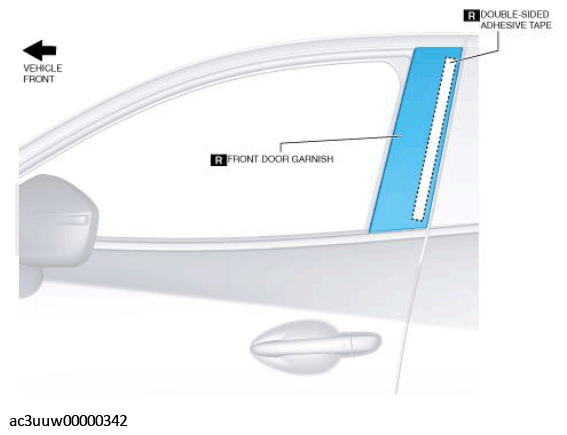

- Peeling off the double-sided adhesive tape shown in the figure using a utility knife.
Courtesy of MAZDA MOTORS CORP.

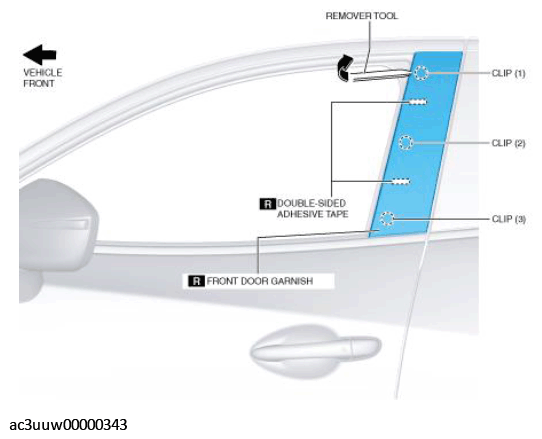

- Move the remover tool in the direction of the arrow shown in the figure and while peeling off the double-sided adhesive tape, detach the front door garnish clips (1), (2) and (3) from the front door starting from the top of the vehicle.
Courtesy of MAZDA MOTORS CORP.
- Remove the front door garnish.
