Front BELTLINE Molding Removal/Installation

Fully open the front door glass.
Remove the sail garnish. (See SAIL GARNISH REMOVAL .) (See SAIL GARNISH INSTALLATION .)

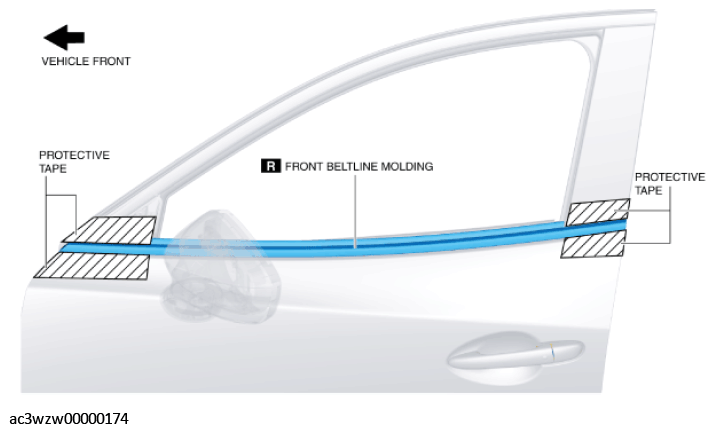

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 1: Affixing Protective Tape
Courtesy of MAZDA MOTORS CORP.

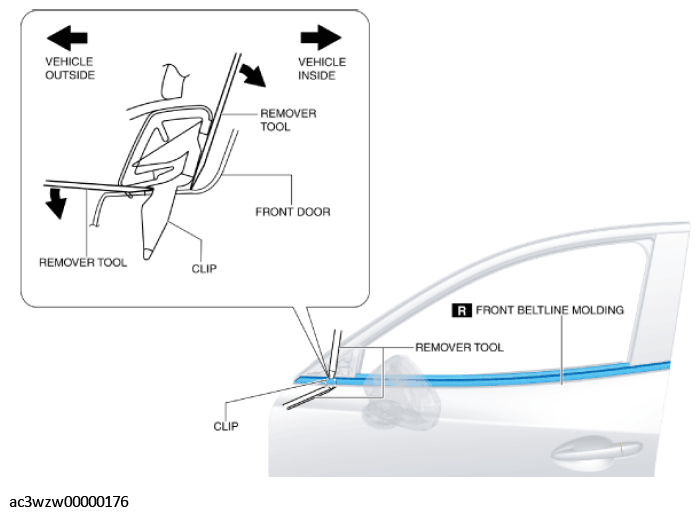

Insert the remover tool in the position shown in the figure.

Fig 2: Inserting Remover Tool
Courtesy of MAZDA MOTORS CORP.

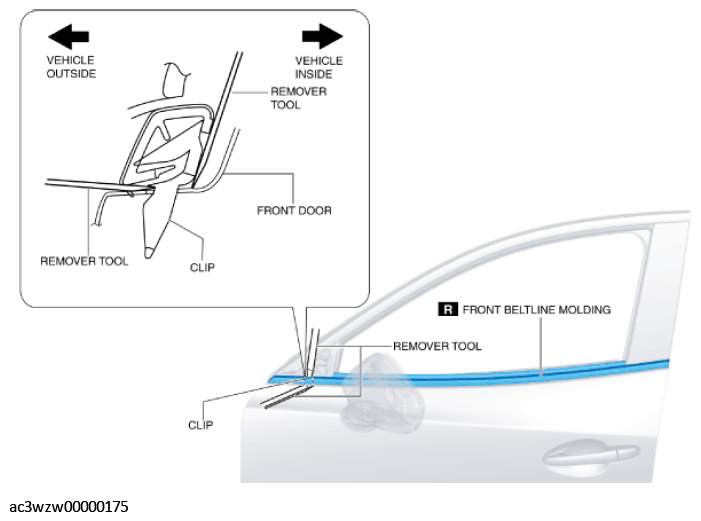

Move the remover tool in the direction of the arrow shown in the figure and detach the clip of the front beltline molding from the front door.

Fig 3: Detaching Clip Of Front Beltline Molding From Front Door
Courtesy of MAZDA MOTORS CORP.

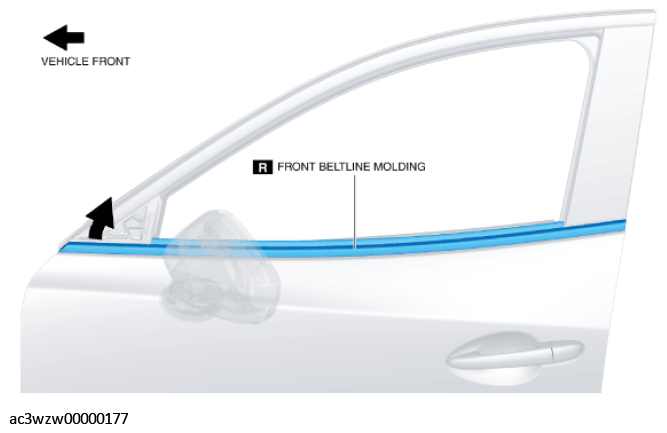

Pull the front beltline molding up in the direction of the arrow shown in the figure.

Fig 4: Pulling Front Beltline Molding Up
Courtesy of MAZDA MOTORS CORP.

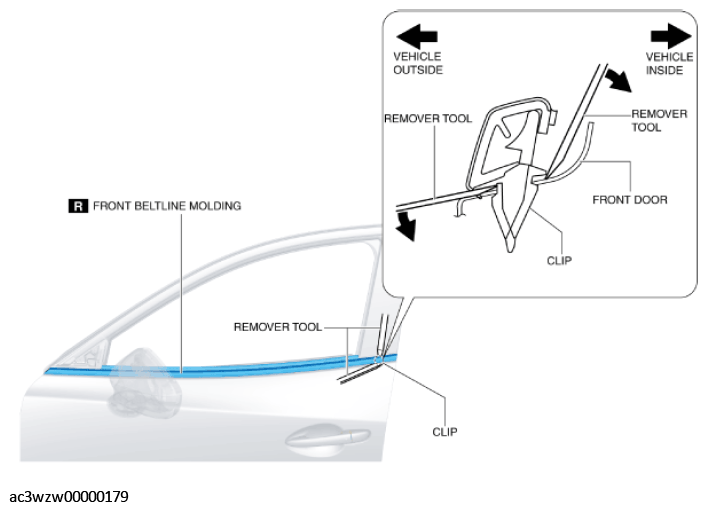

Insert the remover tool in the position shown in the figure.

Fig 5: Inserting Remover Tool
Courtesy of MAZDA MOTORS CORP.

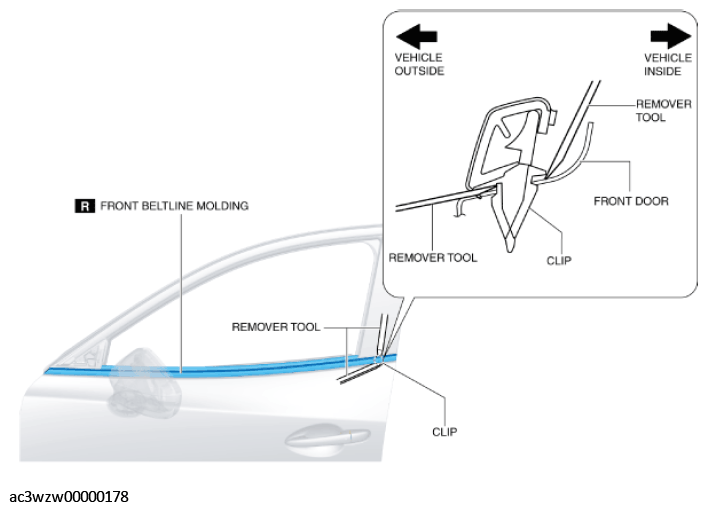

Move the remover tool in the direction of the arrow shown in the figure and detach the clip of the front beltline molding from the front door.

Fig 6: Detaching Clip Of Front Beltline Molding From Front Door
Courtesy of MAZDA MOTORS CORP.

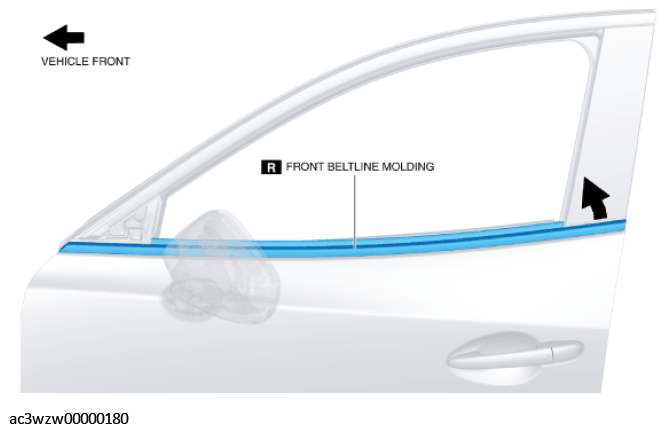

Pull the front beltline molding up in the direction of the arrow shown in the figure.

Fig 7: Pulling Front Beltline Molding Up
Courtesy of MAZDA MOTORS CORP.

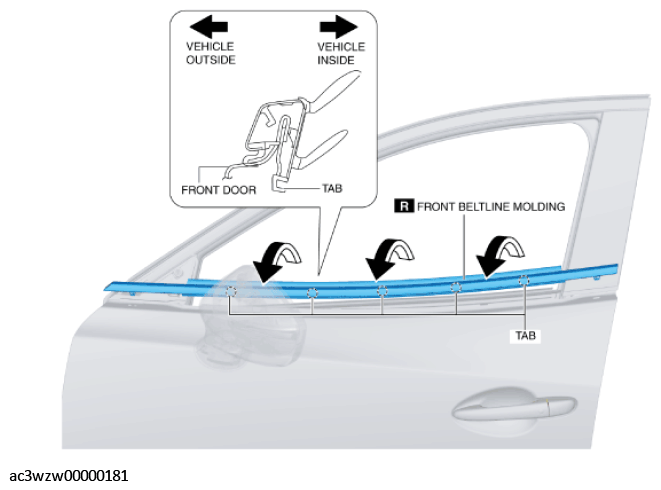

Rotate the front beltline molding in the direction of the arrows shown in the figure and detach the front beltline molding tabs from the front door panel.

Fig 8: Rotating Front Beltline Molding
Courtesy of MAZDA MOTORS CORP.
Remove the front beltline molding.
Install in the reverse order of removal.
