Cowl Grille Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Disconnect windshield washer hose B from joint pipe A of windshield washer hose A. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .)
  4. Remove the front fender molding. (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
  5. Remove the clips.

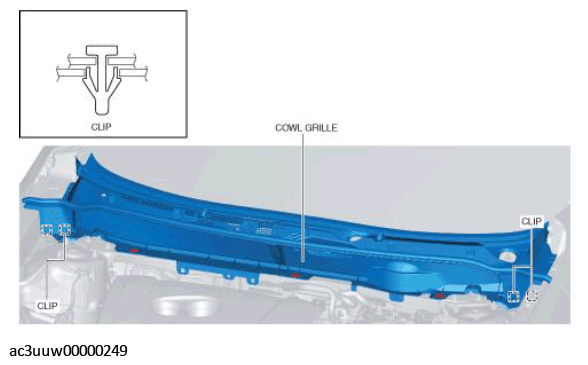

    Fig 1: Locating Cowl Grille Clip
    G11434087Courtesy of MAZDA MOTORS CORP.
  6. Remove the fasteners.

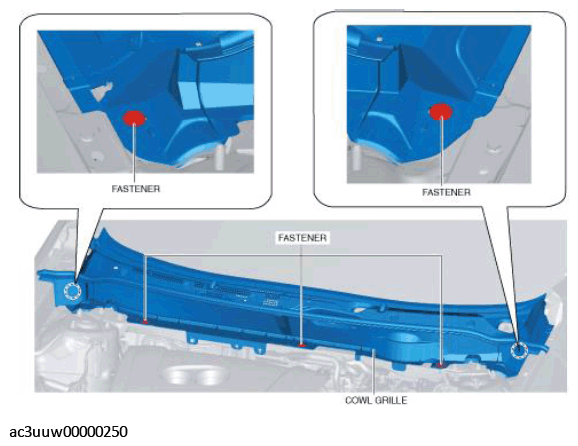

    Fig 2: Removing Fasteners
    G11434088Courtesy of MAZDA MOTORS CORP.
  7. Pull the cowl grille in the direction of the arrows shown in the figure and detach the guides from the windshield.

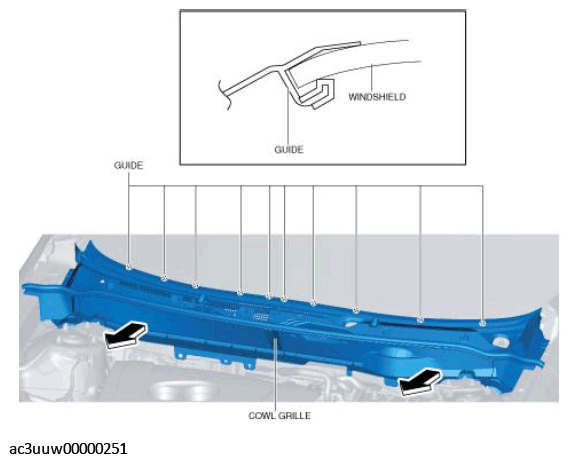

    Fig 3: Pulling Cowl Grille
    G11434089Courtesy of MAZDA MOTORS CORP.
  8. Remove the cowl grille.
  9. Install in the reverse order of removal.
