On-Board Diagnostic Wiring Diagram [Instrument Cluster]

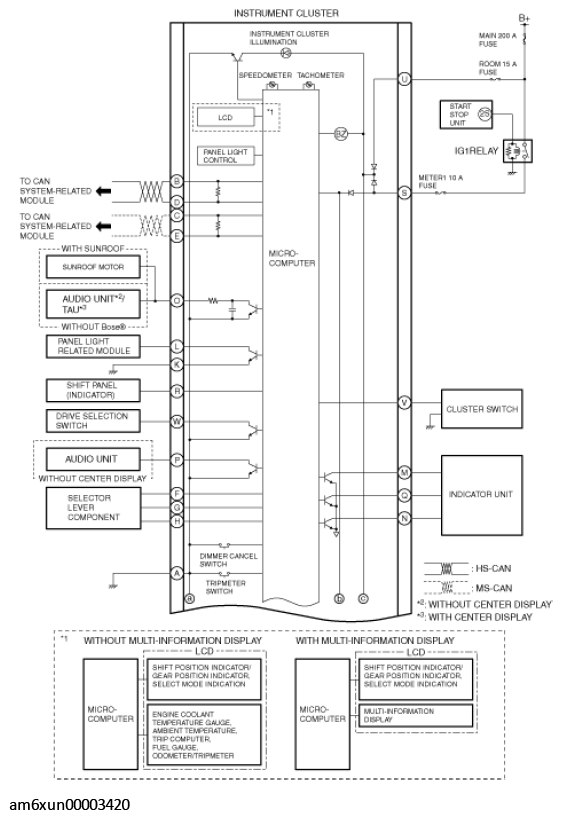

Fig 1: On-Board Diagnostic (Instrument Cluster) Wiring Diagram (1 Of 3)
G11544936Courtesy of MAZDA MOTORS CORP.
Fig 2: On-Board Diagnostic (Instrument Cluster) Wiring Diagram (2 Of 3)
G11430295Courtesy of MAZDA MOTORS CORP.
Fig 3: On-Board Diagnostic (Instrument Cluster) Wiring Diagram (3 Of 3)
G11430296Courtesy of MAZDA MOTORS CORP.
