Foreword [Instrument Cluster]
>>
Troubleshooting Procedure
Troubleshooting Procedure

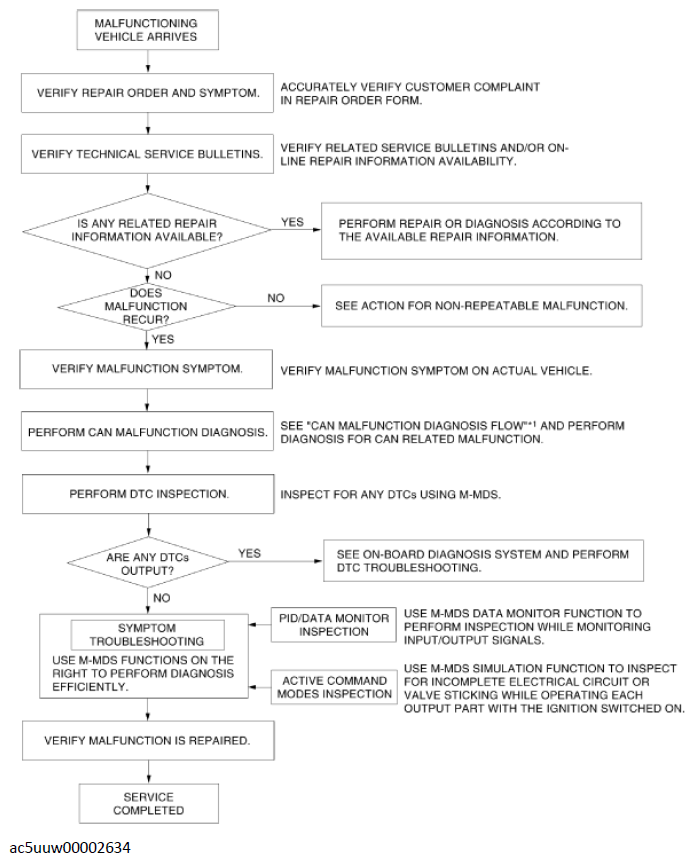

Fig 1: Foreword (Instrument Cluster) Troubleshooting Procedure Chart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
