LED Illumination Inspection

Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Cluster switch (Refer to CLUSTER SWITCH REMOVAL/INSTALLATION .)
Apply battery voltage to cluster switch terminal F, and connect terminal G to ground.
Verify that the LED is turned on.

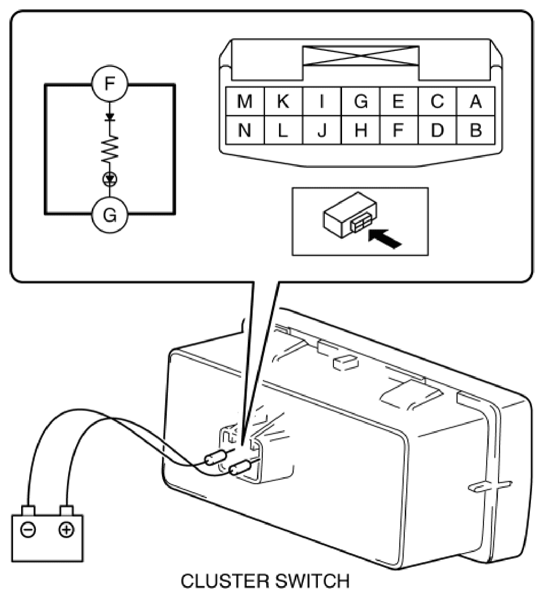

Fig 1: Applying Battery Voltage To Cluster Switch Terminal F
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the cluster switch. (Refer to CLUSTER SWITCH REMOVAL/INSTALLATION .)
