Front Side Trim Removal/Installation

Remove the front scuff plate. (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Partially peel back the seaming welt.

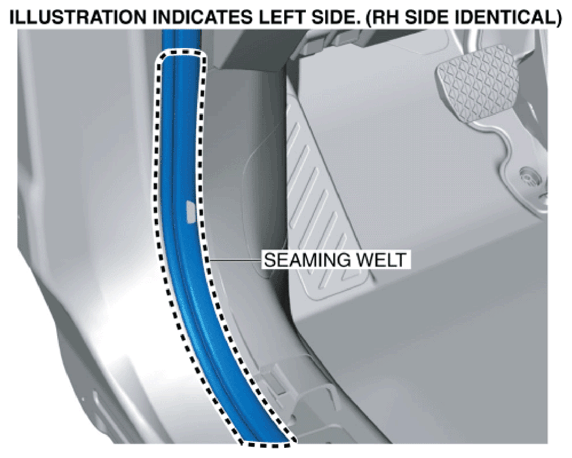

Fig 1: Removing Front Side Trim And Seaming Welt
Courtesy of MAZDA MOTORS CORP.
Remove the cap nut.

Fig 2: Removing Cap Nut
Courtesy of MAZDA MOTORS CORP.
Pull the front side trim out of the stud bolt.

Fig 3: Pulling Front Side Trim Out Of Stud Bolt
Courtesy of MAZDA MOTORS CORP.
Hold the shaded area shown in the figure, move the front side trim in the direction of the arrow, and detach the clip.
Remove the front side trim.
Install in the reverse order of removal.
