Charge Air Cooler Inlet Hose Removal Note

  1. Remove the front under cover No. 1. (Refer to FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
  2. Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Release the lock and remove the charge air cooler inlet hose as shown in the figure.

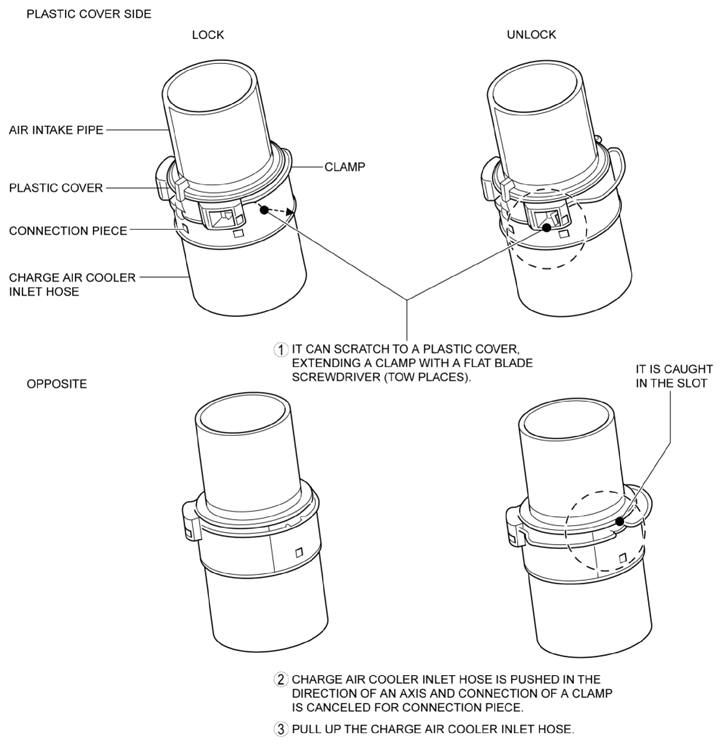

    Fig 1: Identifying Charge Air Cooler Inlet Hose Components
    G10946763Courtesy of MAZDA MOTORS CORP.
