FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

  1. Lift up the vehicle.
  2. Remove the bolts and fasteners.

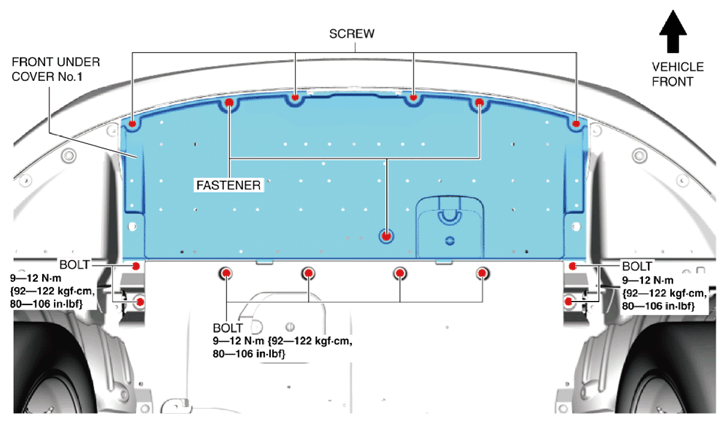

    Fig 1: Identifying Front Under Cover No. 1, Fasteners And Bolts With Torque Specification
    G10950052Courtesy of MAZDA MOTORS CORP.
  3. Remove the screws.
  4. Move the front under cover No. 1 in the direction of the arrow shown in the figure and remove it.

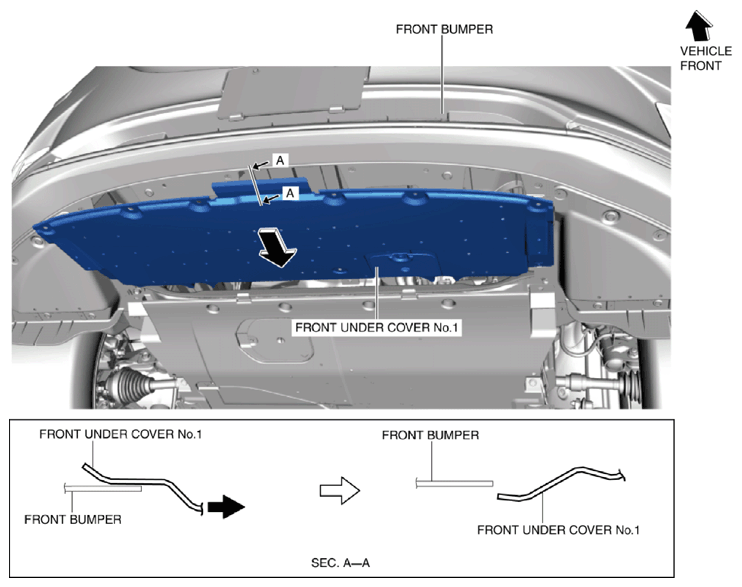

    Fig 2: Removing Front Under Cover No. 1
    G10950053Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
