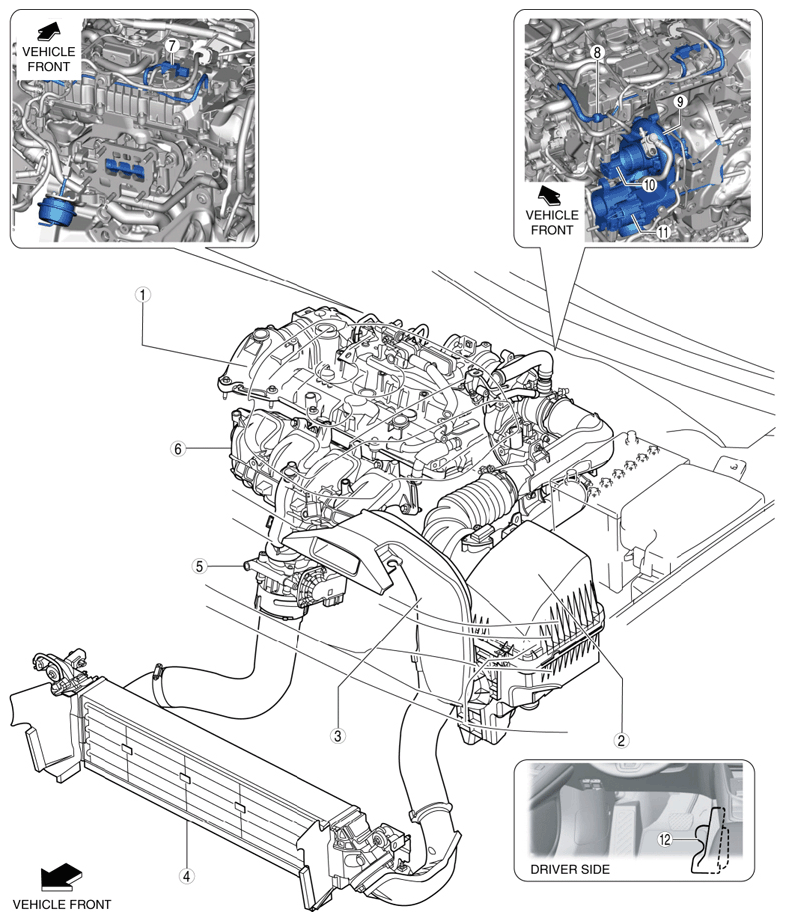

| 1 |
Cylinder head cover (built-in vacuum chamber)
(See
VACUUM CHAMBER INSPECTION .)
(See
VACUUM CHAMBER REMOVAL/INSTALLATION .) |
| 2 |
Air cleaner
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
(See AIR CLEANER ELEMENT REMOVAL/INSTALLATION .)
(See
AIR CLEANER ELEMENT INSPECTION .) |
| 3 |
Fresh-air duct
(See
INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) |
| 4 |
Charge air cooler
(See CHARGE AIR COOLER REMOVAL/INSTALLATION .)
(See
CHARGE AIR COOLER INSPECTION .) |
| 5 |
Throttle body
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2-5T] .)
(See THROTTLE BODY INSPECTION .) |
| 6 |
Intake manifold
(See
INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
(See INTAKE MANIFOLD VACUUM INSPECTION
.) |
| 7 |
Three way solenoid valve
(See THREE WAY SOLENOID VALVE INSPECTION .)
(See THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION .) |
| 8 |
Check valve (intake-air system)
(See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION .)
(See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION .) |
| 9 |
Dynamic pressure turbo
(See DYNAMIC PRESSURE TURBO REMOVAL/INSTALLATION .)
(See
DYNAMIC PRESSURE TURBO INSPECTION .) |
| 10 |
Air bypass valve
(See AIR BYPASS VALVE INSPECTION .)
(See
AIR BYPASS VALVE REMOVAL/INSTALLATION .) |
| 11 |
Wastegate valve actuator
(See
WASTEGATE VALVE ACTUATOR INSPECTION .)
(See
WASTEGATE VALVE ACTUATOR REMOVAL/INSTALLATION .) |
| 12 |
Accelerator pedal
(See ACCELERATOR PEDAL REMOVAL/INSTALLATION .) |
